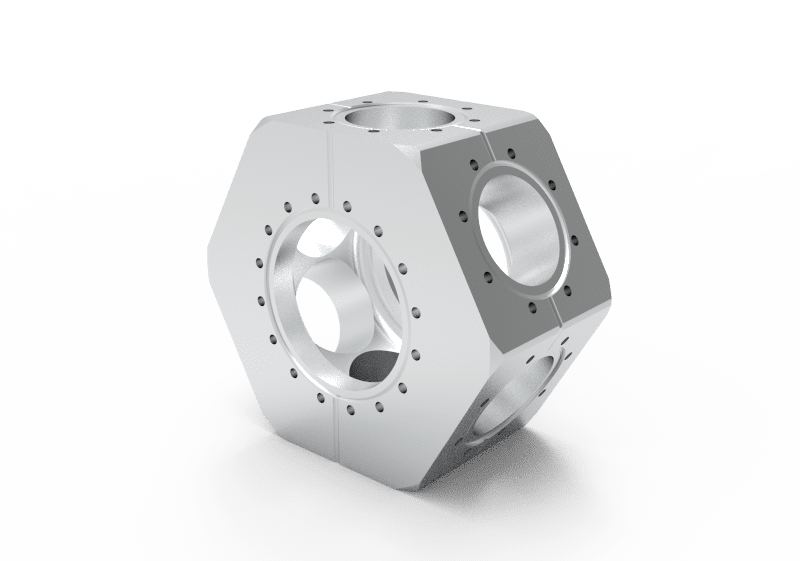

ZK100-6XCF63-01ALU CF Standard Cylinder Chambers CF Standard Cylinder Chambers
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | CF Standard Cylinder Chambers |
|---|---|
| Bore count | 16 |
| Bore type | Metric tapped blind holes |
| Article no. | 358057 |
| Nominal diameter | 100 |
| Flange material | Aluminium |
| Max. operating temperature | 120 °C |
| Max. operating temperature | 248 °F |
| Outer diameter | 240 mm |
| Outer diameter | 9.449 ″ |
| Length | 210 mm |
| Length | 8.268 ″ |
| Length 2 | 120 mm |
| Length 2 | 4.724 ″ |
| Free inner diameter | 2.598 ″ |
| Purity class | PCS |
| Nominal diameter 2 | 63 |
| Free inner diameter | 66 mm |
