Agilent Varian HS-16 Oil Drain Plug, Diffusion Vacuum Pump Replacement Parts, PN 77261001

Write a review
$12472
In stock
+ −
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price
Agilent Varian HS-16 Oil Drain Plug, Diffusion Vacuum Pump Replacement Parts
 Agilent Varian Part Number PN 77261001

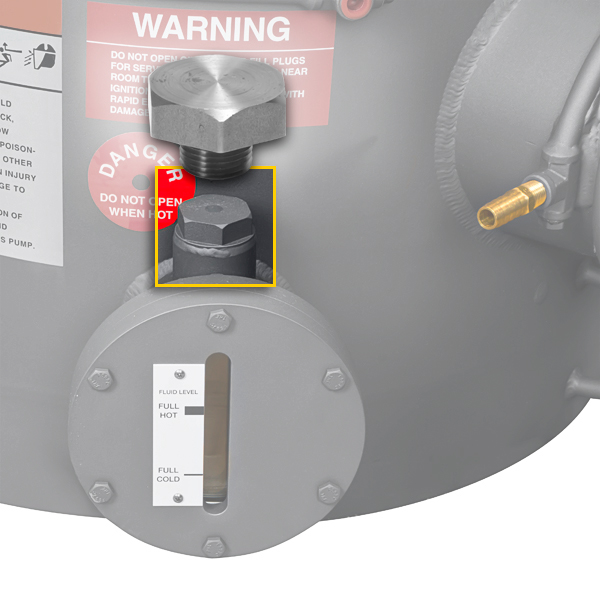

This is a replacement Oil Drain Plug. Fits the Agilent Varian HS-16 Diffusion Pump. For location of the oil drain plug see figure #7 (diagram exploded view & parts illustration) below.

Agilent-HS16-HS20-HS32-NHS35-Diffusion-Pumps-User-Manual.pdf (Agilent-HS16-HS20-HS32-NHS35-Diffusion-Pumps-User-Manual.pdf, 4,502 Kb) [Download]

Agilent-Varian-Diffusion-Pumps-Catalog.pdf (Agilent-Varian-Diffusion-Pumps-Catalog.pdf, 2,786 Kb) [Download]
