Weld-on (W) Zero Length, UV Grade, Fused Silica Viewport 1.5 inch diameter, Stainless Steel
Weld-On (W) Zero Length UV Grade Fused Silica Viewport 1.5 inch diameter
Material: Corning HPFS 7980 Fused Silica (excellent transmission for UV to 250nm), Stainless Steel
Thermal Range: -100 °C to 200 °C

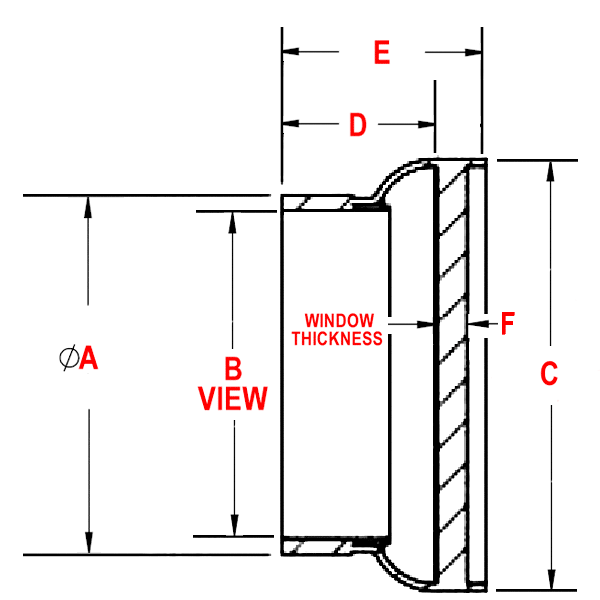

Common Dimensions
A. 1.50"
B. 1.37"
C. .125"
D. .680"
E. .850"
F. 1.76"
These weld-on UV grade, zero length fused silica viewports have a 1.5 inch diameter weldable stainless steel flange. Weld-on fittings are used for permanent, non-alterable ultra-high vacuum applications. These fittings use a welded stainless steel bead to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 200 °C for bake-out. These vacuum fittings are made of corrosion resistant stainless steel.
Weld-On (W) Zero Length UV Grade Fused Silica Viewport 1.5 inch diameter
Material: Corning HPFS 7980 Fused Silica (excellent transmission for UV to 250nm), Stainless Steel
Thermal Range: -100 °C to 200 °C
Common Dimensions
A. 1.50"
B. 1.37"
C. .125"
D. .680"
E. .850"
F. 1.76"
