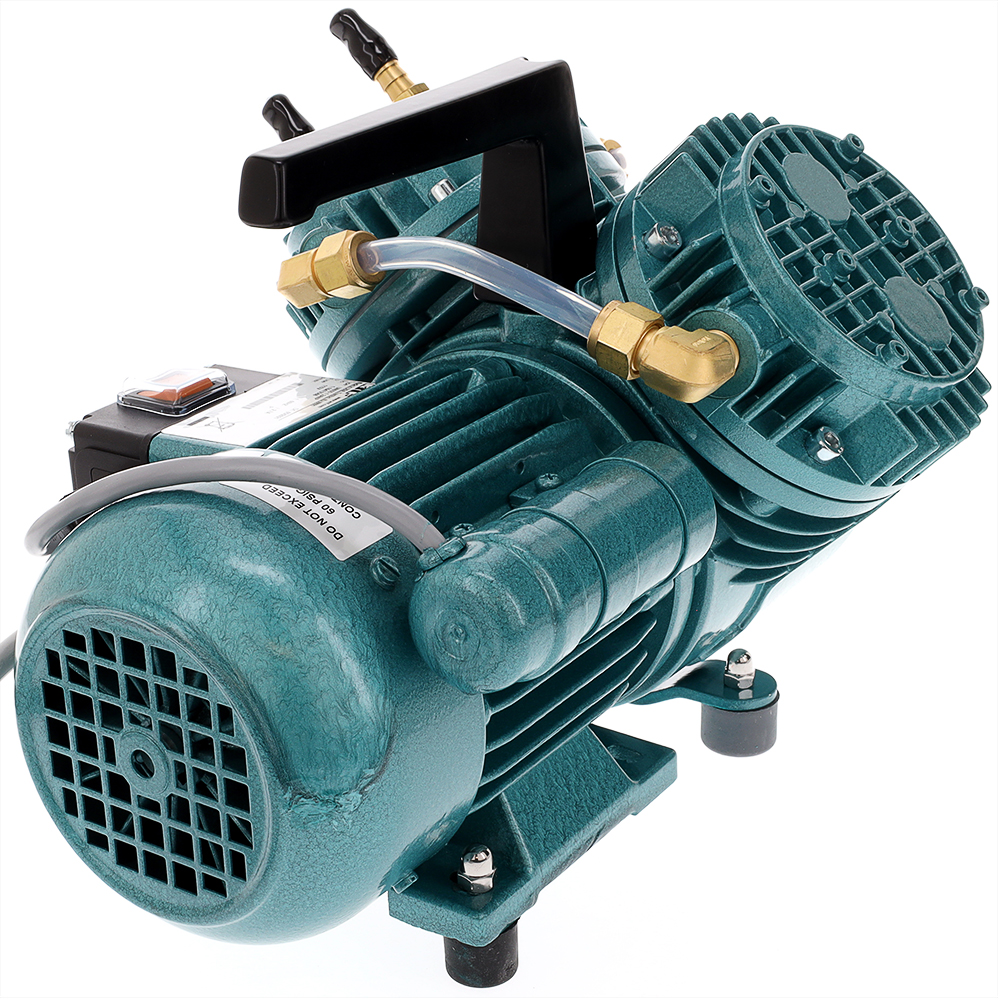

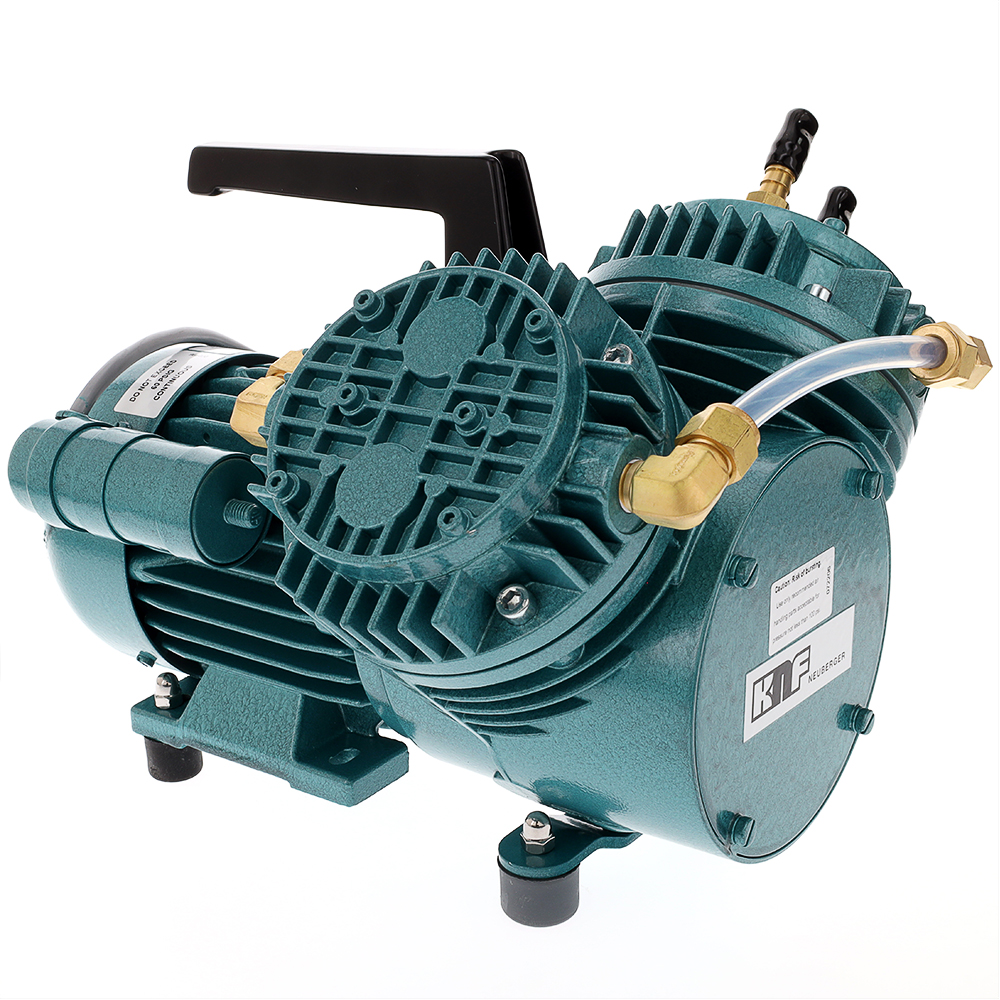

KNF Neuberger Twin Diaphragm Vacuum Pump & Compressor, 115VAC, 60Hz TEFC Motor. KNF Neuberger: N035.1.2ANP

This KNF Neuberger twin diaphragm dry pump, model N035.1.2ANP can be used as a vacuum pump or compressor. Vacuum flow rate is 62 l/min with an ultimate vacuum of 75 Torr. As a compressor, maximum pressure is 60 psig @2.2 SCFM.

This pump has a 115 VAC, 60Hz, 6.3A, totally enclosed fan cooled motor (TEFC, IP44). Total weight is 26 lbs.

The N035.1.2ANP pump is virtually maintenance free and uses neoprene diaphragms and gaskets and oversized bearings for long life. Its 100% oil free and is rated to pump air, gas or vapor at temperatures between 5 °C and 40 °C.

KNF_Neuberger_N035.1.2ANP_Datasheet.pdf (KNF_Neuberger_N035.1.2ANP_Datasheet.pdf, 281 Kb) [Download]

KNF_Neuberger__N035.18_Operating_Instructions.pdf (KNF_Neuberger__N035.18_Operating_Instructions.pdf, 749 Kb) [Download]

Ideal-Vacuum-Company-Image_med.pdf (Ideal-Vacuum-Company-Image_med.pdf, 7,973 Kb) [Download]
