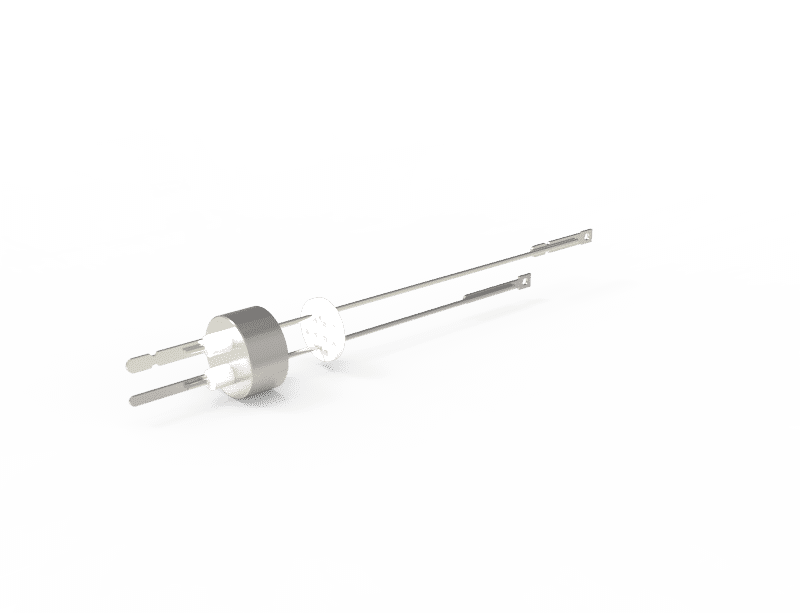

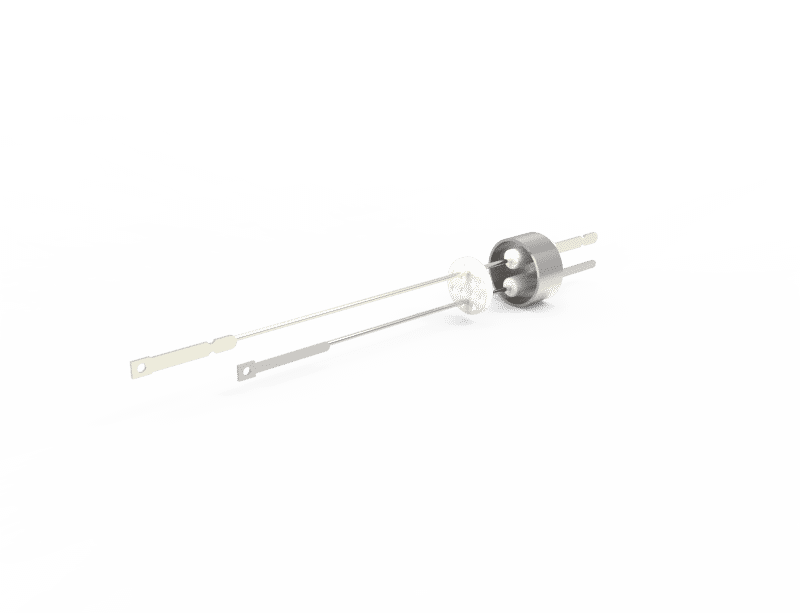

W-TC1-CE-K 1 Pair 1 Pair
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | With mini plug |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 101005 |
| Connection type | Weldable |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of TC pairs | 1 |
| Impedance | Not specified |
| Shield | Not specified |
| Plug connections | Air side |
| Material housing/weld adapter | Stainless steel 304L |
| Material insulation | Alumina ceramic |
| Thermocouple type | K |
| Magnetic | Yes |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Diameter | 18,97 mm |
| Diameter | 0.747 ″ |
| Diameter 2 | 1,3 mm |
| Diameter 2 | 0.051 ″ |
| Length | 144 mm |
| Length | 5.669 ″ |
| Length 2 | 119 mm |
| Length 2 | 4.685 ″ |
| Length 3 | 35 mm |
| Length 3 | 1.378 ″ |
| Purity class | PCS |
