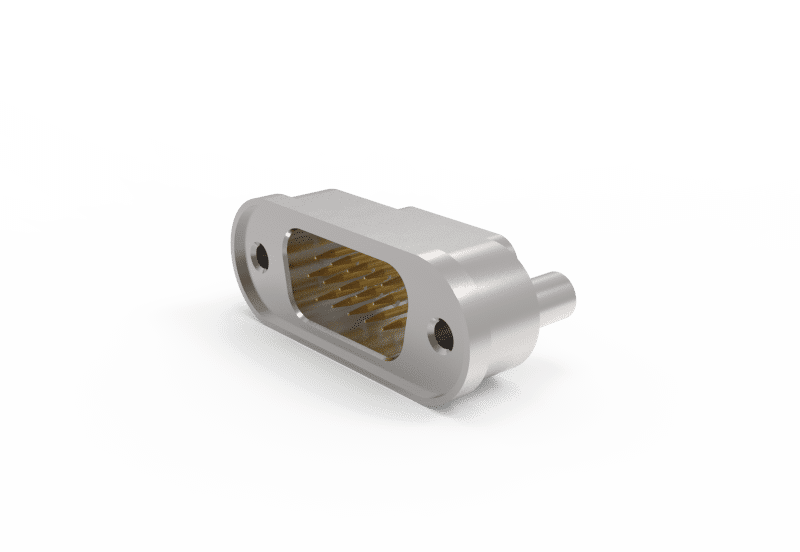

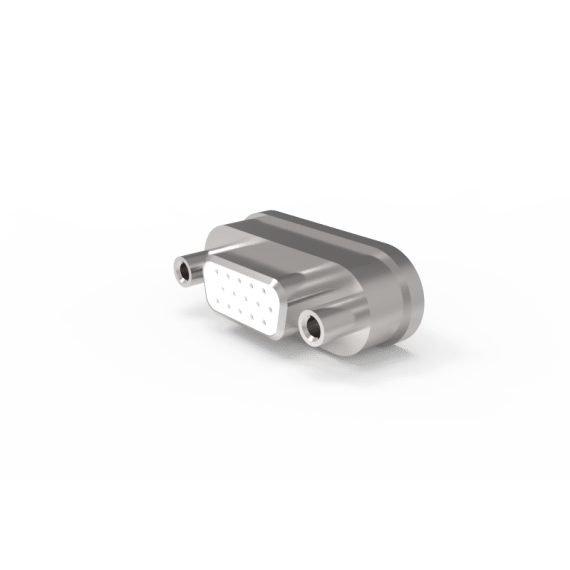

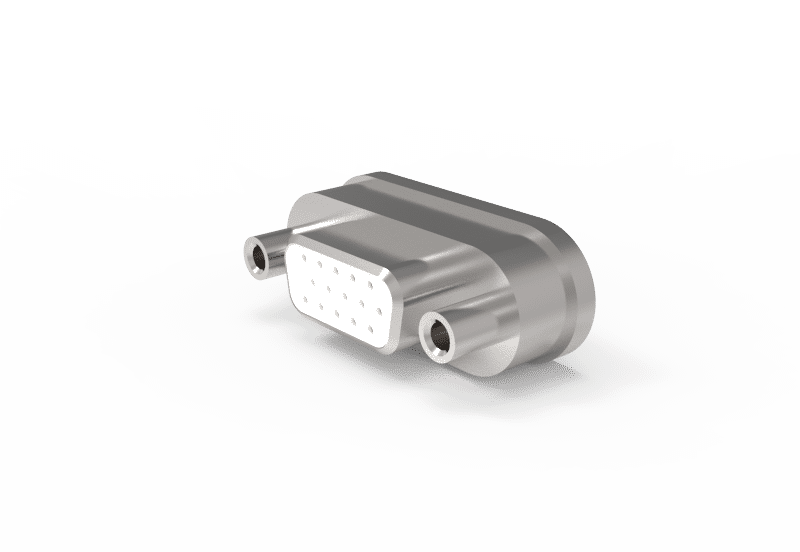

W-SUBDHD-15-FM Sub-D HD (high density) Sub-D HD (high density)
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Sub-D HD (high density) |
|---|---|
| Bakeout temperature | 482 °F |
| Max. bakeout temperature | 250 °C |
| Contact coating | Gold-plated |
| Article no. | 102516 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 15 |
| Max. voltage | 0,5 kV DC |
| Max. voltage | 0.5 kV DC |
| Max. current per contact | 5 A |
| Maximum current per contact | 5 A |
| Plug connections | Both Sides |
| Material housing/weld adapter | Stainless steel 304L |
| Material contact(s) | Beryllium copper |
| Magnetic | No |
| Min. operating temperature | -200 °C |
| Min. operating temperature | -328 °F |
| Max. operating temperature | 250 °C |
| Max. operating temperature | 482 °F |
| Diameter contact(s) | 0,7 mm |
| Diameter contact(s) | 0.028 ″ |
| Length | 14,63 mm |
| Length | 0.576 ″ |
| Length 2 | 12,62 mm |
| Length 2 | 0.497 ″ |
| Length 3 | 32,94 mm |
| Length 3 | 1.297 ″ |
| Purity class | PCS |
