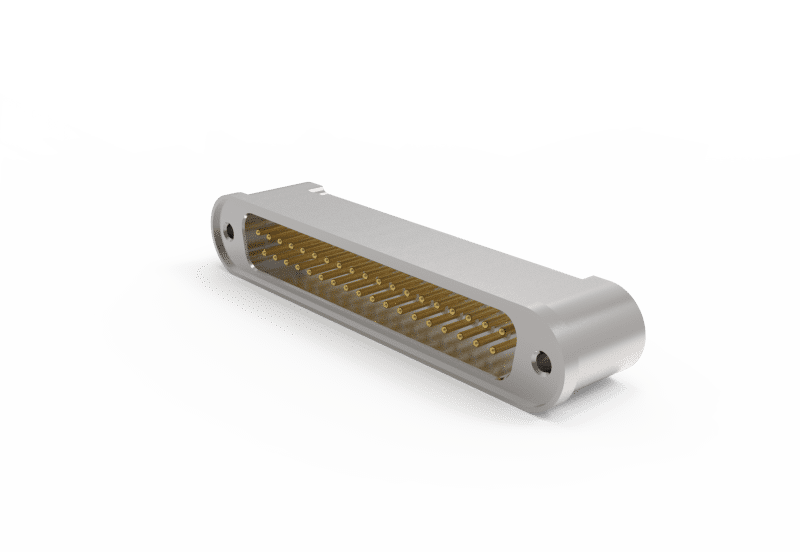

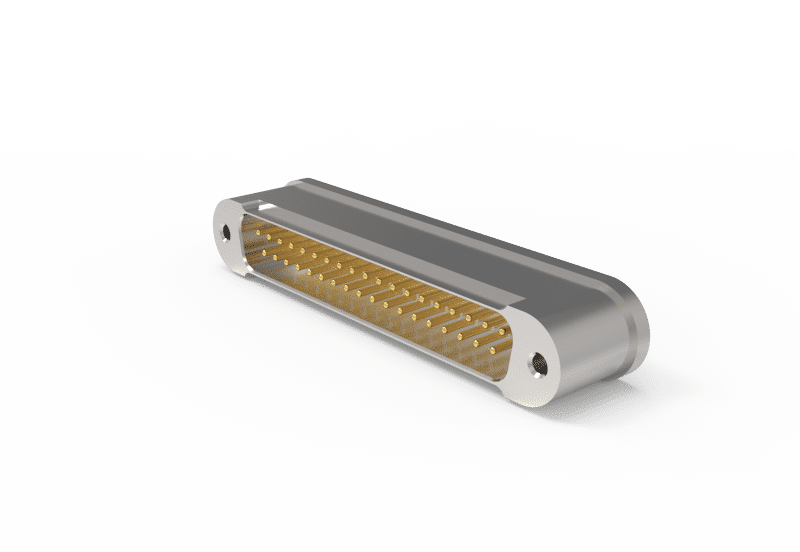

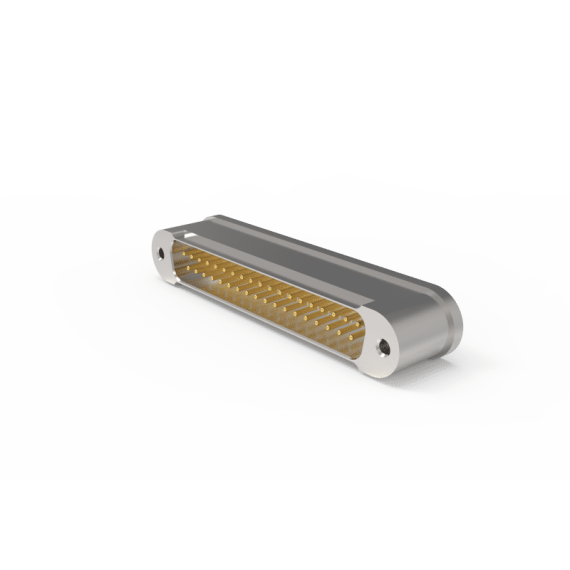

W-SUBD-37-EXT Sub-D extended Sub-D extended
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Sub-D extended |
|---|---|
| Bakeout temperature | 662 °F |
| Max. bakeout temperature | 350 °C |
| Contact coating | Gold-plated |
| Article no. | 105140 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 37 |
| Max. voltage | 0,5 kV DC |
| Max. voltage | 0.5 kV DC |
| Max. current per contact | 7,5 A |
| Maximum current per contact | 7.5 A |
| Plug connections | Both Sides |
| Material contact(s) | Beryllium copper |
| Magnetic | No |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 250 °C |
| Max. operating temperature | 482 °F |
| Diameter contact(s) | 1 mm |
| Diameter contact(s) | 0.039 ″ |
| Length | 14,94 mm |
| Length | 0.588 ″ |
| Length 2 | 12,62 mm |
| Length 2 | 0.497 ″ |
| Length 3 | 71,48 mm |
| Length 3 | 2.814 ″ |
| Purity class | PCS |
