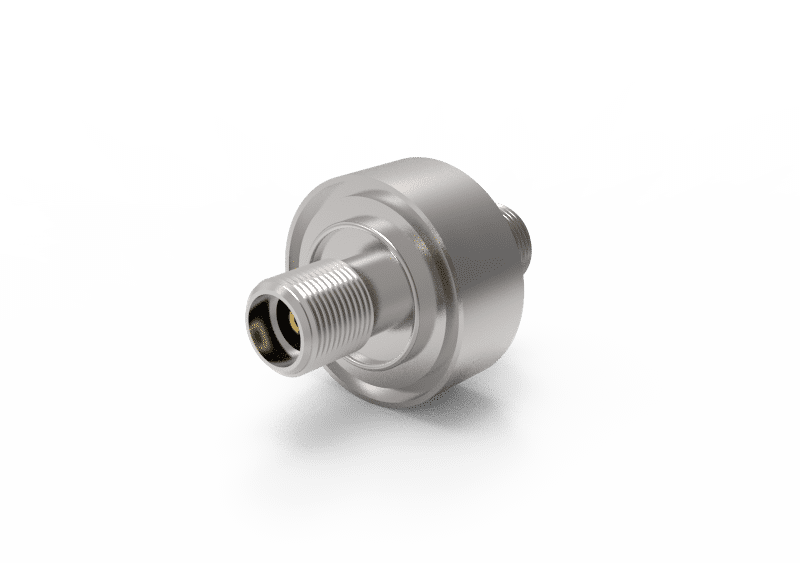

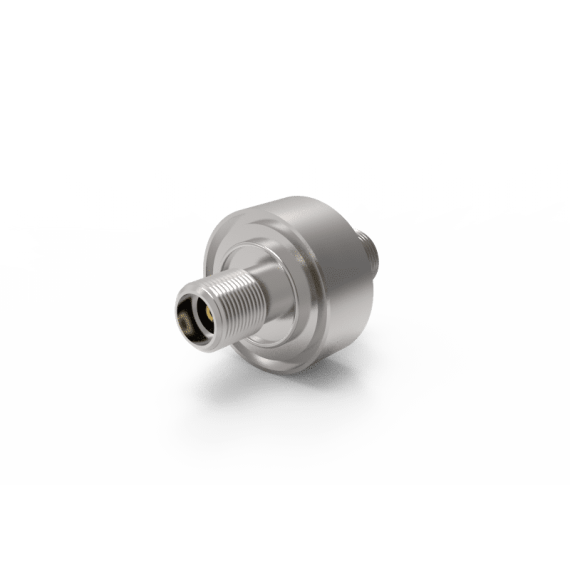

W-SMA50-GS-DE-CE-SS SMA 50 Ohm, Grounded Shield SMA 50 Ohm, Grounded Shield
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | SMA 50 Ohm, grounded shield |
|---|---|
| Bakeout temperature | 662 °F |
| Max. bakeout temperature | 350 °C |
| Contact coating | Gold-plated |
| Article no. | 101641 |
| Connection type | Weldable |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 1 |
| Max. voltage | 0,5 kV DC |
| Max. voltage | 0.5 kV DC |
| Max. current per contact | 0,8 A |
| Maximum current per contact | 0.8 A |
| Impedance | 50 Ohm |
| Maximum frequency (recommended) | 18 GHz |
| Frequency | 18 GHz |
| Shield | Grounded |
| Plug connections | Both Sides |
| Material housing/weld adapter | Stainless steel 304L |
| Material insulation | glass-ceramic |
| Material contact(s) | Stainless steel |
| Magnetic | No |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 250 °C |
| Max. operating temperature | 482 °F |
| Outer diameter | 15,8 mm |
| Outer diameter | 0.622 ″ |
| Length | 23,1 mm |
| Length | 0.909 ″ |
| Purity class | PCS |
