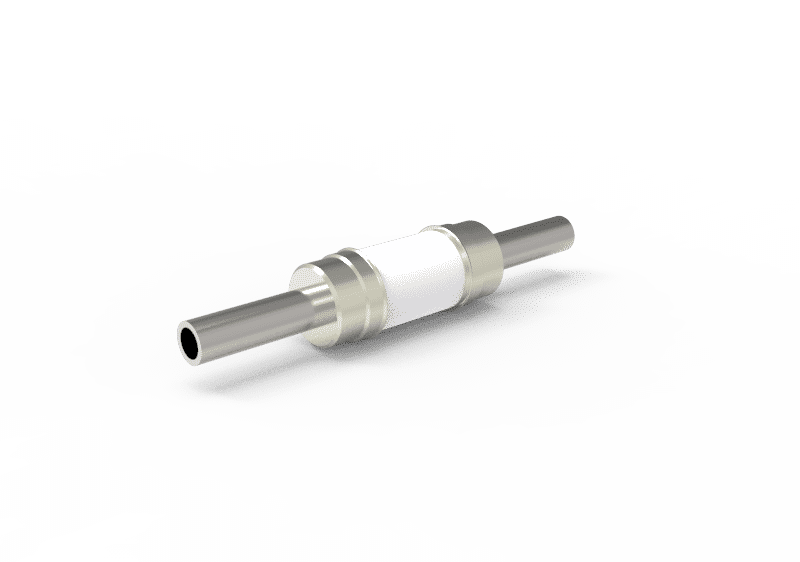

W-KR13-SST64 Cryogenics Cryogenics
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Isolators, cryogenic |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 100941 |
| Connection type | Weldable |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Max. voltage | 13 kV DC |
| Max. voltage | 13 kV DC |
| Impedance | Not specified |
| Shield | Not specified |
| Plug connections | Not specified |
| Material housing/weld adapter | Stainless steel 304L |
| Material insulation | Alumina ceramic |
| Magnetic | Yes |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Outer diameter | 14,5 mm |
| Outer diameter | 0.571 ″ |
| Inner diameter | 4,5 mm |
| Inner diameter | 0.177 ″ |
| Diameter | 6,4 mm |
| Diameter | 0.252 ″ |
| Diameter 2 | 4,5 mm |
| Diameter 2 | 0.177 ″ |
| Diameter 3 | 6,4 mm |
| Diameter 3 | 0.252 ″ |
| Length | 76 mm |
| Length | 2.992 ″ |
| Length 2 | 14,5 mm |
| Length 2 | 0.571 ″ |
| Purity class | PCS |
