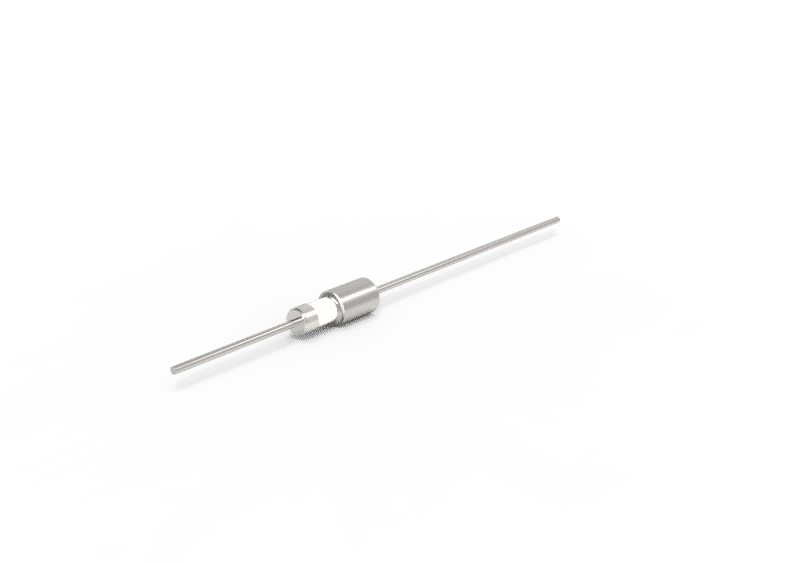

W-HV5-CE-SS13 1 Conductor-Ø 1.3 mm 1 Conductor-Ø 1.3 mm
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | 5 kV DC, 1 contact, Ø 1.3 mm |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 100916 |
| Connection type | Weldable |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 1 |
| Max. voltage | 5 kV DC |
| Max. voltage | 5 kV DC |
| Max. current per contact | 1,8 A |
| Maximum current per contact | 1.8 A |
| Impedance | Not specified |
| Shield | Not specified |
| Plug connections | None |
| Material housing/weld adapter | Stainless steel 304L |
| Material insulation | Alumina ceramic |
| Material contact(s) | Stainless steel 304 |
| Magnetic | No |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Diameter contact(s) | 1,3 mm |
| Diameter contact(s) | 0.051 ″ |
| Length contact(s), vacuum side | 53,3 mm |
| Length contact | 2.098 ″ |
| Outer diameter | 6,27 mm |
| Outer diameter | 0.247 ″ |
| Length | 102 mm |
| Length | 4.016 ″ |
| Length 2 | 48,2 mm |
| Length 2 | 1.898 ″ |
| Length 3 | 25 mm |
| Length 3 | 0.984 ″ |
| Purity class | PCS |
