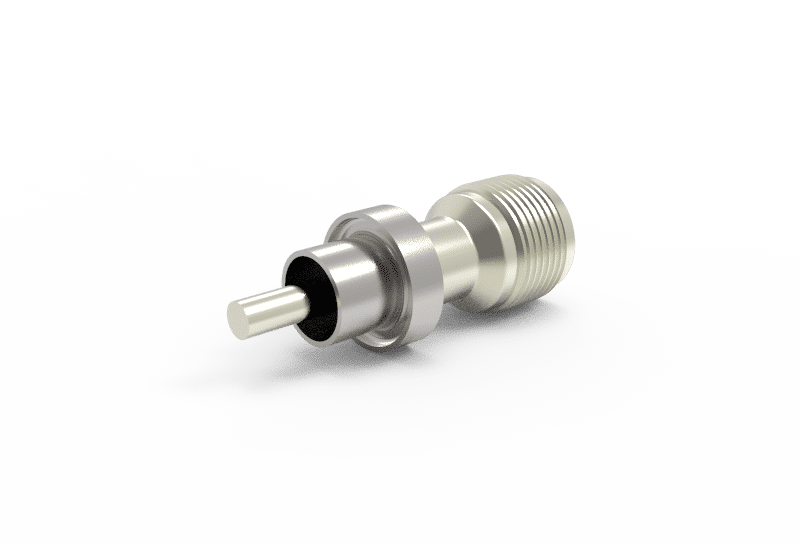

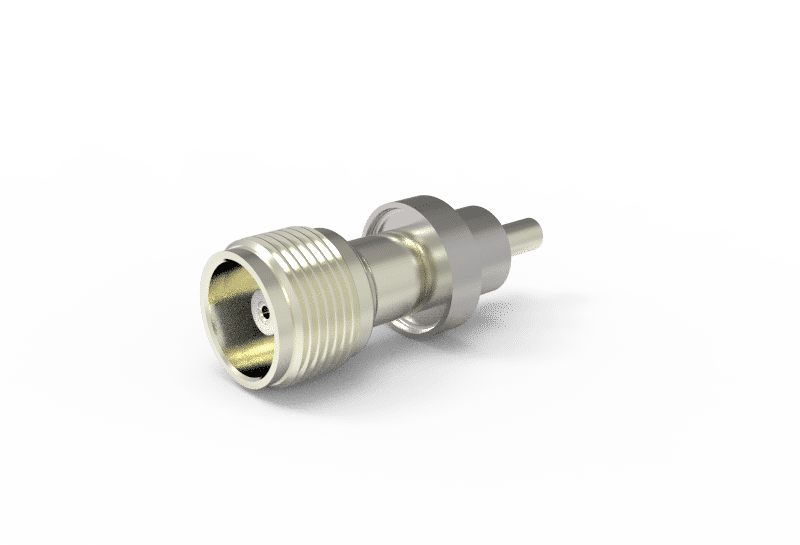

W-HN50-GS-SE-CE-NI Type HN 50 Ohm Type HN 50 Ohm
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Type HN 50 Ohm |
|---|---|
| Bakeout temperature | 392 °F |
| Max. bakeout temperature | 200 °C |
| Article no. | 100884 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 1 |
| Max. voltage | 7 kV DC |
| Max. voltage | 7 kV DC |
| Max. current per contact | 7 A |
| Maximum current per contact | 7 A |
| Impedance | 50 Ohm |
| Maximum frequency (recommended) | 7 GHz |
| Frequency | 7 GHz |
| Plug connections | Air side |
| Material contact(s) | Copper alloy |
| Magnetic | No |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 150 °C |
| Max. operating temperature | 302 °F |
| Diameter contact(s) | 4,9 mm |
| Diameter contact(s) | 0.193 ″ |
| Outer diameter | 18,97 mm |
| Outer diameter | 0.747 ″ |
| Diameter | 12,7 mm |
| Diameter | 0.5 ″ |
| Diameter 2 | 4,9 mm |
| Diameter 2 | 0.193 ″ |
| Length | 32 mm |
| Length | 1.26 ″ |
| Length 2 | 19,8 mm |
| Length 2 | 0.78 ″ |
| Length 3 | 10,9 mm |
| Length 3 | 0.429 ″ |
| Purity class | PCS |
