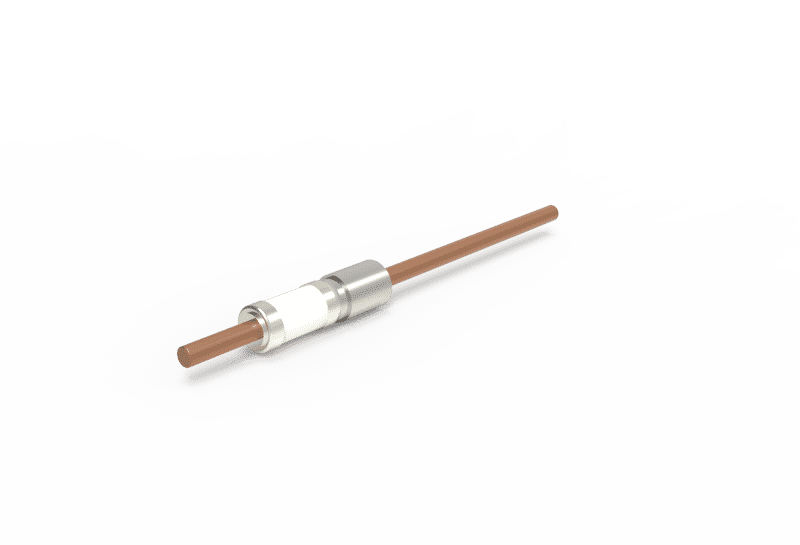

W-HC8-CE-CU64 Conductor-Ø 6,4 mm Conductor-Ø 6,4 mm
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | 8 kV DC, contact-Ø 6.4 mm |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 100875 |
| Connection type | Weldable |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 1 |
| Max. voltage | 8 kV DC |
| Max. voltage | 8 kV DC |
| Max. current per contact | 185 A |
| Maximum current per contact | 185 A |
| Impedance | Not specified |
| Shield | Not specified |
| Plug connections | None |
| Material housing/weld adapter | Stainless steel 304L |
| Material insulation | Alumina ceramic |
| Material contact(s) | Copper |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Diameter contact(s) | 6,4 mm |
| Diameter contact(s) | 0.252 ″ |
| Length contact(s), vacuum side | 105 mm |
| Length contact | 4.134 ″ |
| Outer diameter | 15,8 mm |
| Outer diameter | 0.622 ″ |
| Length | 184 mm |
| Length | 7.244 ″ |
| Length 2 | 25 mm |
| Length 2 | 0.984 ″ |
| Purity class | PCS |
