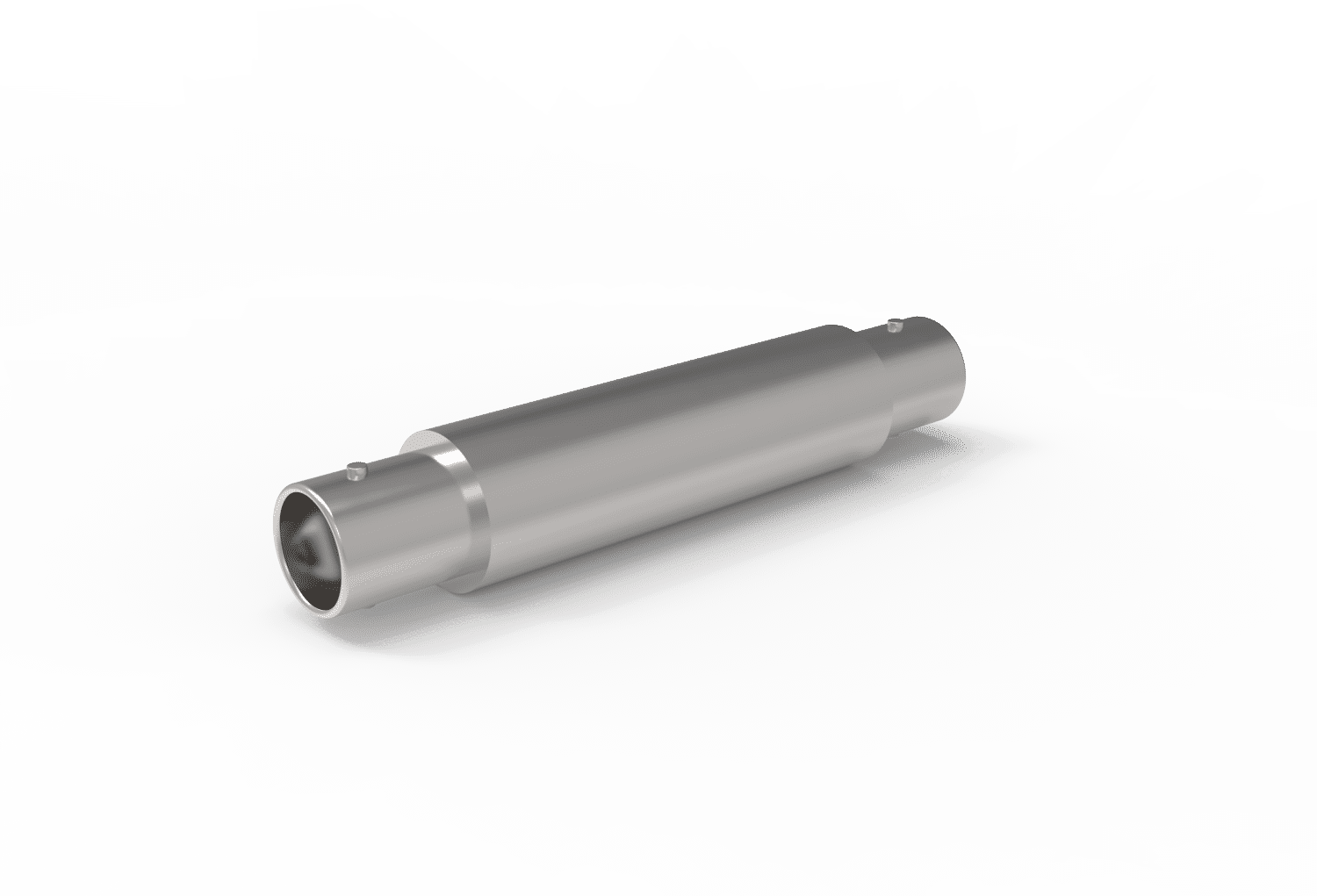

W-BNC-GS-DE-CE-SS BNC, grounded shield BNC, grounded shield
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | BNC, grounded shield |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 100866 |
| Connection type | Weldable |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 1 |
| Max. voltage | 0,5 kV DC |
| Max. voltage | 0.5 kV DC |
| Max. current per contact | 3,6 A |
| Maximum current per contact | 3.6 A |
| Impedance | Not matched |
| Shield | Grounded |
| Plug connections | Both Sides |
| Material housing/weld adapter | Stainless steel 304L |
| Material insulation | Alumina ceramic |
| Material contact(s) | Stainless steel 304 |
| Magnetic | No |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Outer diameter | 12,57 mm |
| Outer diameter | 0.495 ″ |
| Length | 54,5 mm |
| Length | 2.146 ″ |
| Length 2 | 43 mm |
| Length 2 | 1.693 ″ |
| Purity class | PCS |
