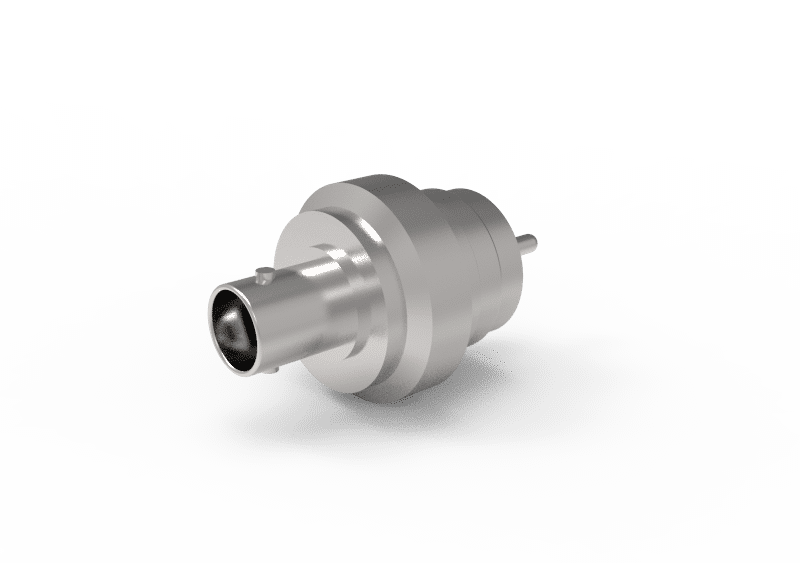

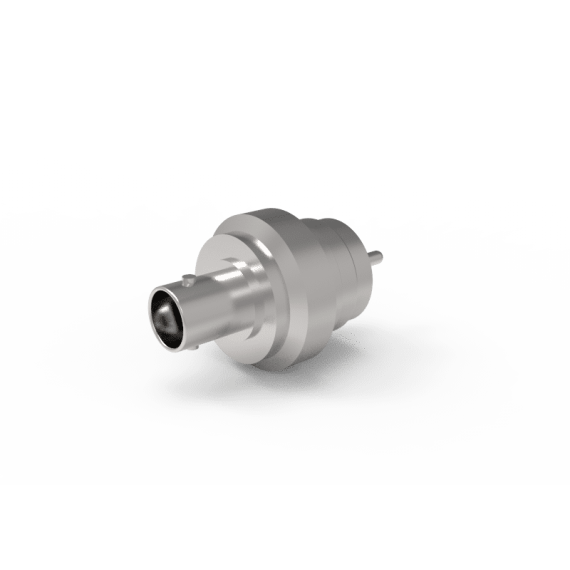

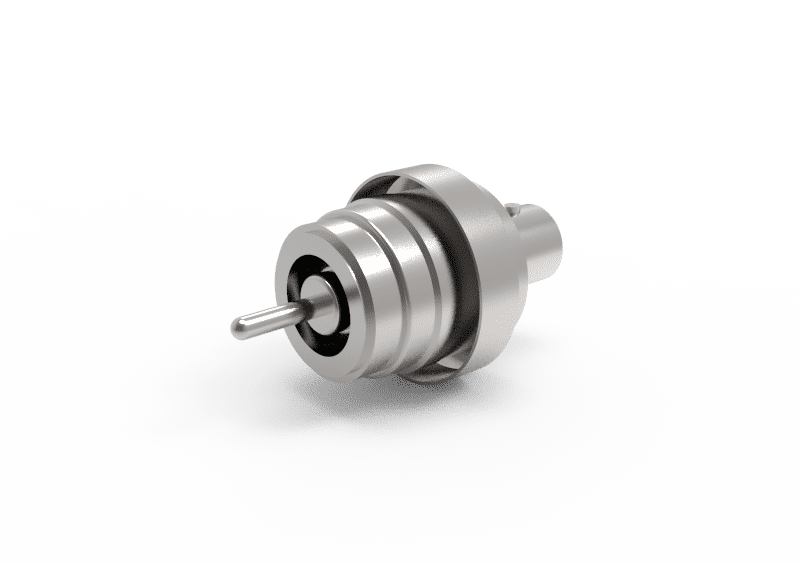

W-BNC-FS-SE-CE-SS BNC, floating shield BNC, floating shield
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | BNC, floating shield |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 100868 |
| Connection type | Weldable |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 1 |
| Max. voltage | 0,5 kV DC |
| Max. voltage | 0.5 kV DC |
| Voltage contact shield | 0,5 kV DC |
| Maximum voltage shield/ground [kV DC] | 2,5 kV DC |
| Voltage shield ground | 2.5 kV DC |
| Max. current per contact | 3,6 A |
| Maximum current per contact | 3.6 A |
| Impedance | Not matched |
| Shield | Floating |
| Plug connections | Air side |
| Material housing/weld adapter | Kovar® |
| Material insulation | Alumina ceramic |
| Material contact(s) | Stainless steel 304 |
| Magnetic | Yes |
| Min. operating temperature | -80 °C |
| Min. operating temperature | -112 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Diameter contact(s) | 2,4 mm |
| Diameter contact(s) | 0.094 ″ |
| Diameter | 24,64 mm |
| Diameter | 0.97 ″ |
| Diameter 2 | 17,4 mm |
| Diameter 2 | 0.685 ″ |
| Diameter 3 | 2,4 mm |
| Diameter 3 | 0.094 ″ |
| Length | 21,5 mm |
| Length | 0.846 ″ |
| Length 2 | 12,3 mm |
| Length 2 | 0.484 ″ |
| Length 3 | 10,7 mm |
| Length 3 | 0.421 ″ |
| Purity class | PCS |
