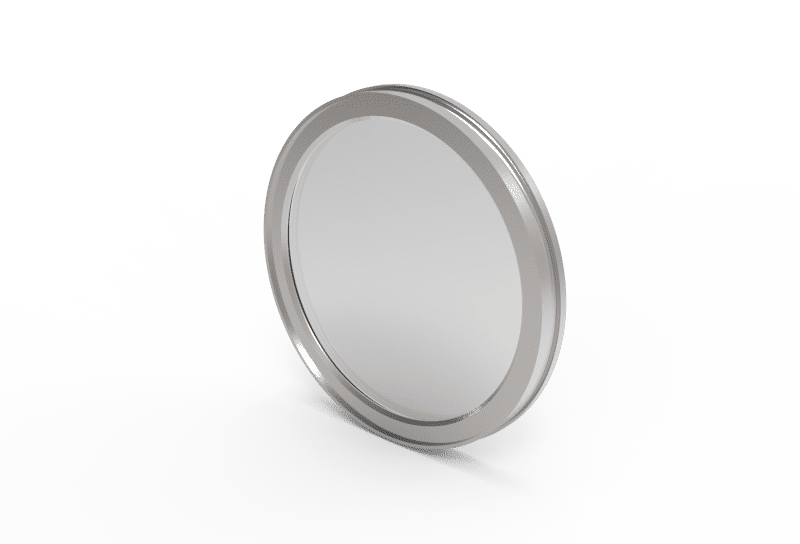

VPISOK160B-E-Z Standard KF/ISO Borosilicate Standard KF/ISO Borosilicate
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Category | Borosilicate ISO-K Viewport for flange installation, Standard |
---|---|
Bakeout temperature | 302 °F |
Max. bakeout temperature | 150 °C |
Window thickness | 0.354 ″ |
Article no. | 301580 |
Connection type | ISO-K |
Nominal diameter | 160 |
Leakrate | < 1E-9 mbar ∙ l/s |
Max. operating temperature | 150 °C |
Max. operating temperature | 302 °F |
Outer diameter | 183 mm |
Outer diameter | 7.205 ″ |
Diameter | 180,2 mm |
Diameter | 7.094 ″ |
Length | 17 mm |
Length | 0.669 ″ |
Diameter | 7.094in |
View diameter | 6.024 ″ |
Window mounting | FKM-O-Ring |
Window thickness | 9 mm |
Window material | Borosilicate |
Transmission range | appr. 400 - 2500 nm |
View diameter | 153 mm |
