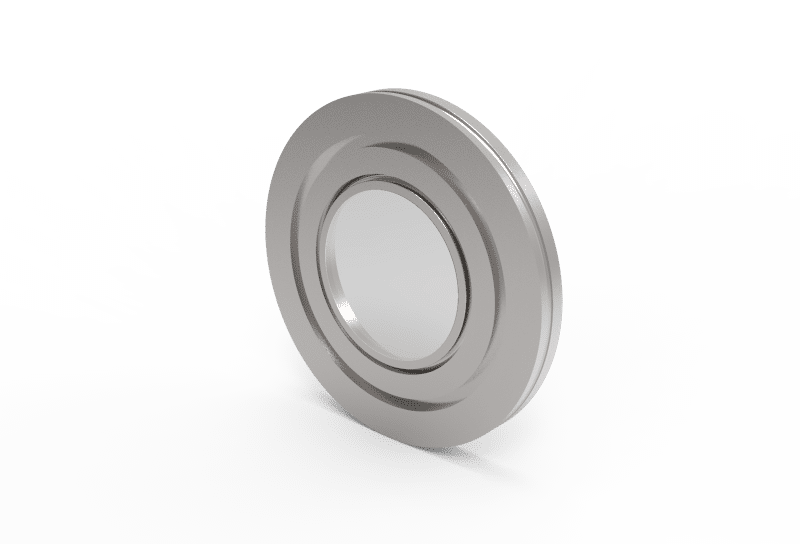

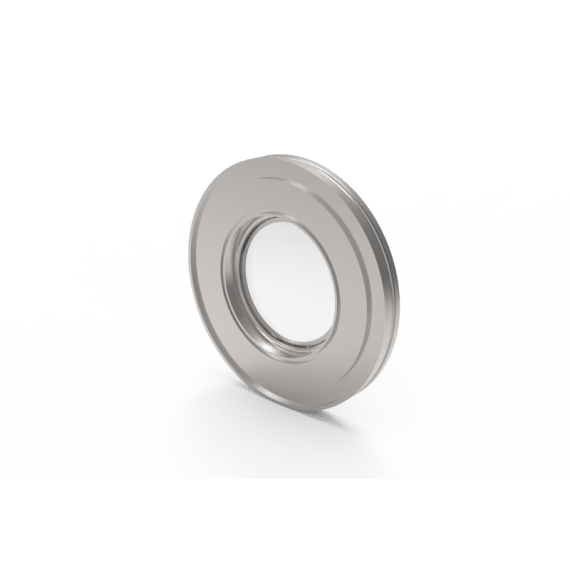

VPISOK100B-L Standard KF/ISO Borosilicate Standard KF/ISO Borosilicate
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Borosilicate ISO-K Viewport, Standard |
|---|---|
| Bakeout temperature | 302 °F |
| Max. bakeout temperature | 150 °C |
| Window thickness | 0.138 ″ |
| Maximum heating rate | 3 K/min |
| Article no. | 301148 |
| Connection type | ISO-K |
| Nominal diameter | 100 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Max. operating temperature | 150 °C |
| Max. operating temperature | 302 °F |
| Outer diameter | 130 mm |
| Outer diameter | 5.118 ″ |
| Length | 12 mm |
| Length | 0.472 ″ |
| Length 2 | 13 mm |
| Length 2 | 0.512 ″ |
| View diameter | 2.48 ″ |
| Window mounting | Thermally Fused |
| Window thickness | 3,5 mm |
| Window material | Borosilicate |
| Transmission range | appr. 400 - 2500 nm |
| View diameter | 63 mm |
| Purity class | PCS |
