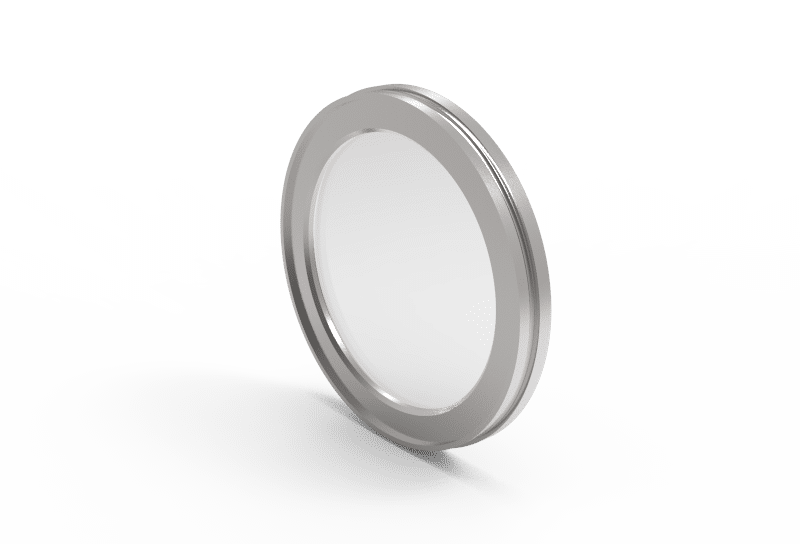

VPISOK100B-E-Z Standard KF/ISO Borosilicate Standard KF/ISO Borosilicate
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Borosilicate ISO-K Viewport for flange installation, Standard |
|---|---|
| Bakeout temperature | 302 °F |
| Max. bakeout temperature | 150 °C |
| Window thickness | 0.197 ″ |
| Article no. | 301575 |
| Connection type | ISO-K |
| Nominal diameter | 100 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Max. operating temperature | 150 °C |
| Max. operating temperature | 302 °F |
| Outer diameter | 133 mm |
| Outer diameter | 5.236 ″ |
| Diameter | 131 mm |
| Diameter | 5.157 ″ |
| Length | 13 mm |
| Length | 0.512 ″ |
| Diameter | 5.157in |
| View diameter | 4.016 ″ |
| Window mounting | FKM-O-Ring |
| Window thickness | 5 mm |
| Window material | Borosilicate |
| Transmission range | appr. 400 - 2500 nm |
| View diameter | 102 mm |
