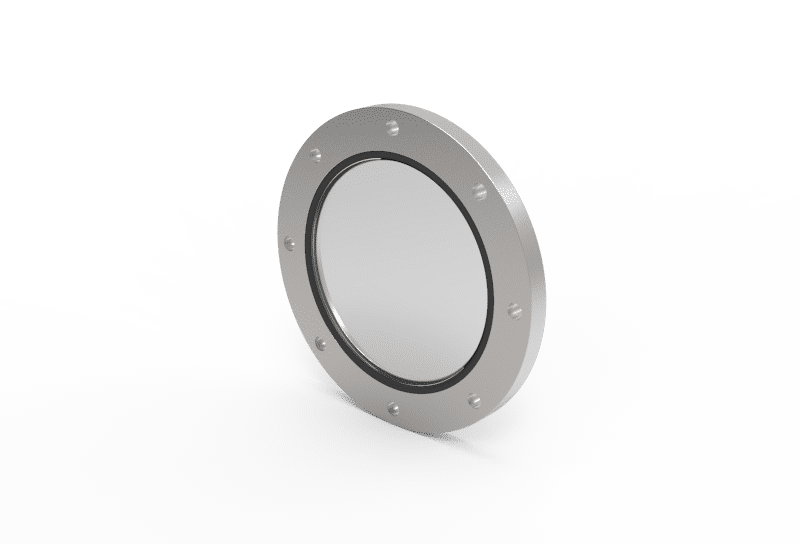

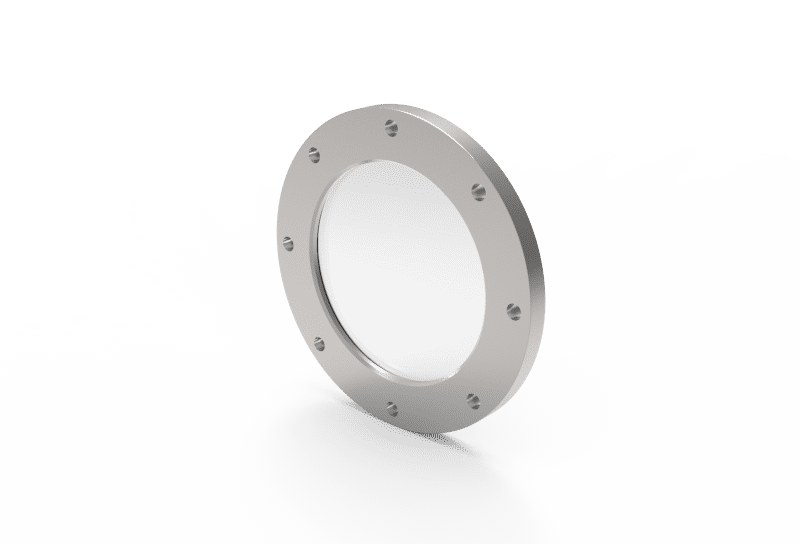

VPISOF160B-E Standard KF/ISO Borosilicate Standard KF/ISO Borosilicate
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Borosilicate ISO-F Viewport, Standard |
|---|---|
| Bakeout temperature | 302 °F |
| Max. bakeout temperature | 150 °C |
| Window thickness | 0.354 ″ |
| Article no. | 349731 |
| Connection type | ISO-F |
| Nominal diameter | 160 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Flange material | Anodised Aluminium |
| Max. operating temperature | 150 °C |
| Max. operating temperature | 302 °F |
| Outer diameter | 225 mm |
| Outer diameter | 8.858 ″ |
| Length | 16 mm |
| Length | 0.63 ″ |
| View diameter | 6.024 ″ |
| Window mounting | FKM-O-Ring |
| Window thickness | 9 mm |
| Window material | Borosilicate |
| Transmission range | appr. 400 - 2500 nm |
| View diameter | 153 mm |
