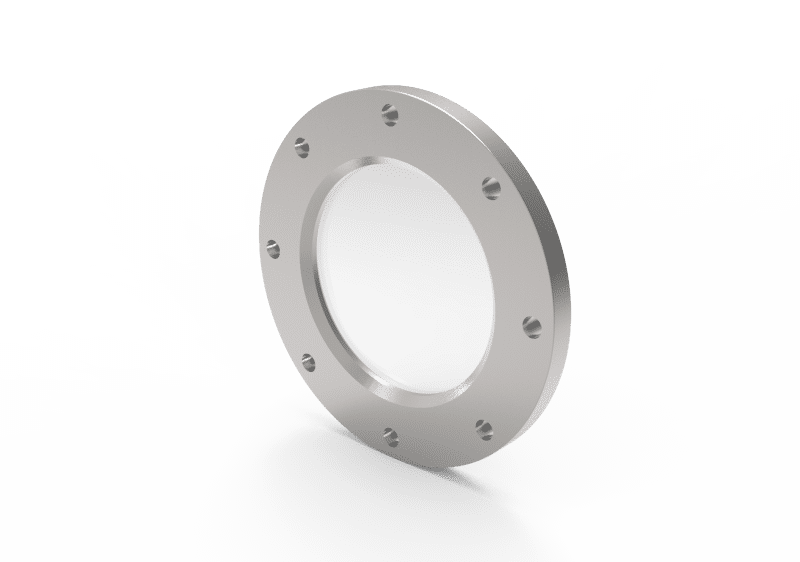

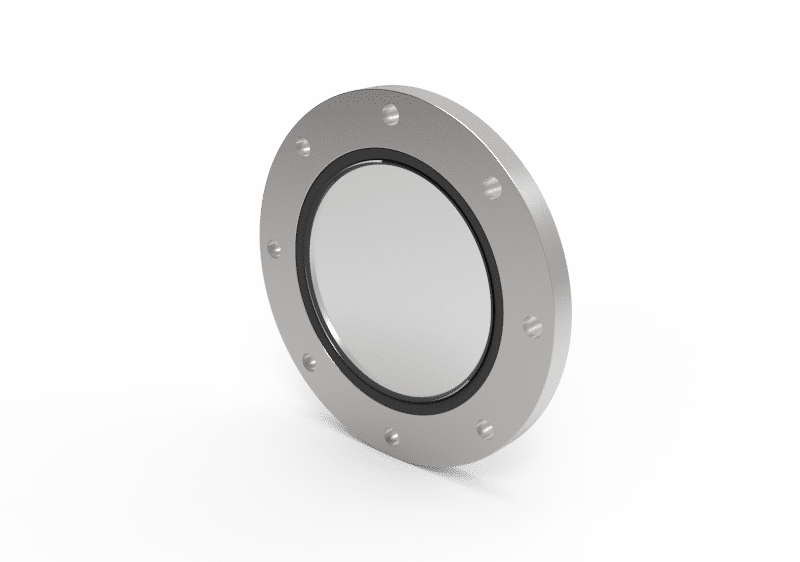

VPISOF100Q-E Standard KF/ISO Fused Silica Standard KF/ISO Fused Silica
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Fused Silica KF/ISO Viewport, Standard |
|---|---|
| Bakeout temperature | 302 °F |
| Max. bakeout temperature | 150 °C |
| Window thickness | 0.197 ″ |
| Article no. | 303905 |
| Connection type | ISO-F |
| Nominal diameter | 100 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Flange material | Anodised Aluminium |
| Max. operating temperature | 150 °C |
| Max. operating temperature | 302 °F |
| Outer diameter | 165 mm |
| Outer diameter | 6.496 ″ |
| Length | 12 mm |
| Length | 0.472 ″ |
| View diameter | 4.016 ″ |
| Window mounting | FKM-O-Ring |
| Window thickness | 5 mm |
| Surface quality | 60/40 (scratch/dig) |
| Window material | Fused Silica |
| Transmission range | appr. 300 - 2000 nm |
| View diameter | 102 mm |
