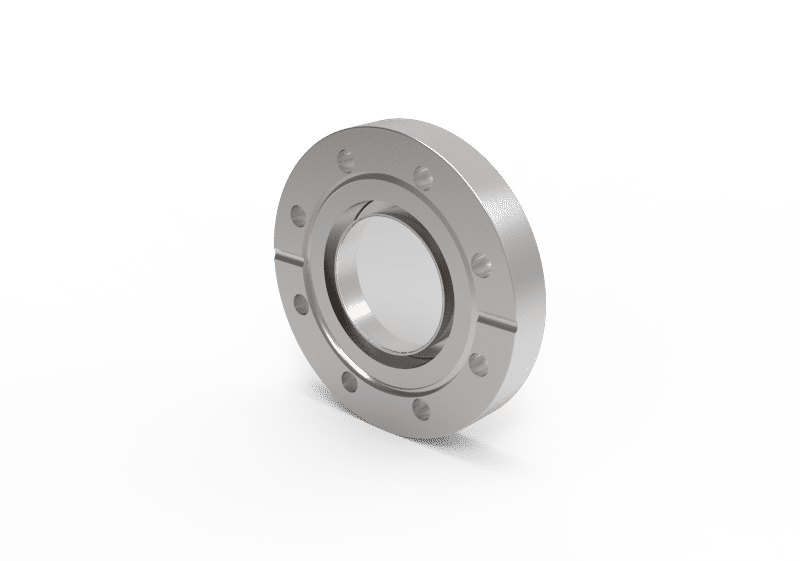

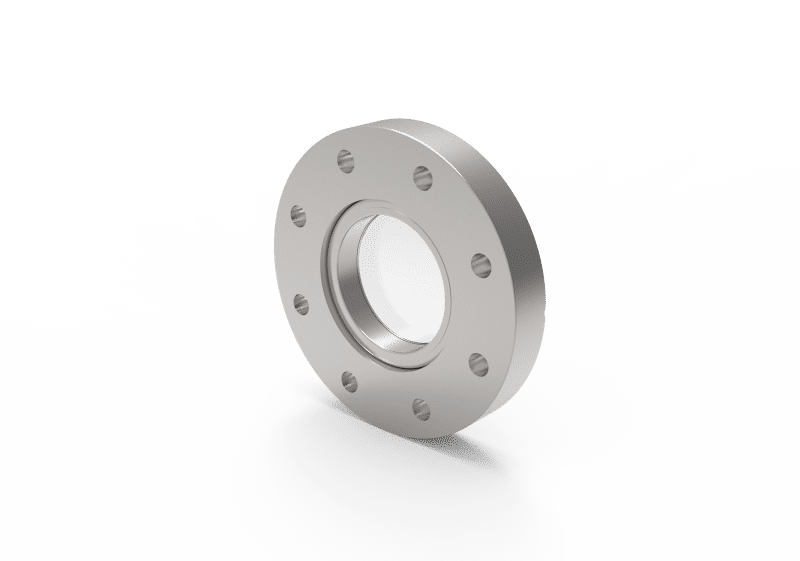

VPCF63UVS-L Sapphire Sapphire
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | UHV extended range viewport, optical, UV/IR |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Window thickness | 0.098 ″ |
| Maximum heating rate | 20 K/min |
| Article no. | 406862 |
| Connection type | CF |
| Nominal diameter | 63 |
| Min. operating temperature | -100 °C |
| Min. operating temperature | -148 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Outer diameter | 114 mm |
| Outer diameter | 4.488 ″ |
| Length | 17,3 mm |
| Length | 0.681 ″ |
| View diameter | 1.929 ″ |
| Window mounting | Brazed |
| Window thickness | 2,5 mm |
| Surface quality | 50/20 (scratch/dig) |
| Window material | Sapphire (UV-grade) |
| Transmission range | appr. 250 - 5000 nm |
| View diameter | 49 mm |
| Parallelism | < 3' |
