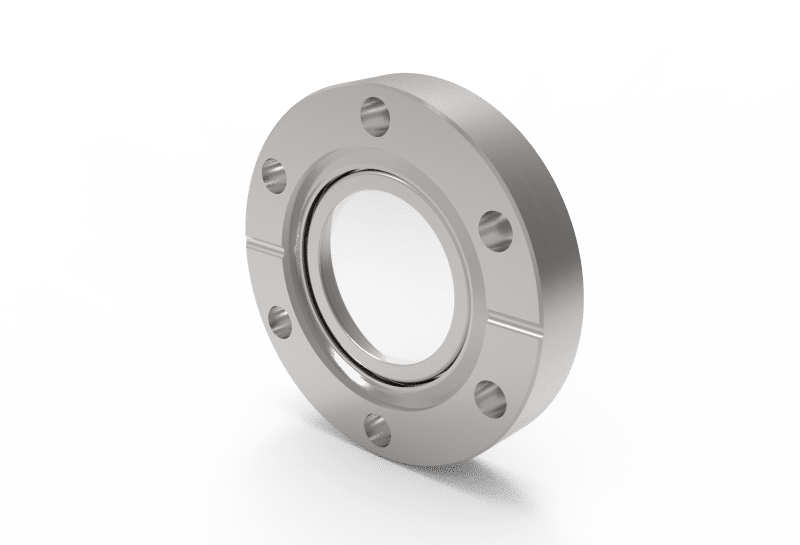

VPCF40CAF2-K Calcium Fluoride Calcium Fluoride
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | UHV extended range viewport, optical, UV/IR |
|---|---|
| Bakeout temperature | 248 °F |
| Max. bakeout temperature | 120 °C |
| Window thickness | 0.118 ″ |
| Maximum heating rate | 3 K/min |
| Article no. | 303148 |
| Connection type | CF |
| Nominal diameter | 40 |
| Leakrate | < 1E-10 mbar ∙ l/s |
| Min. operating temperature | -45 °C |
| Min. operating temperature | -49 °F |
| Max. operating temperature | 120 °C |
| Max. operating temperature | 248 °F |
| Outer diameter | 70 mm |
| Outer diameter | 2.756 ″ |
| Length | 12,7 mm |
| Length | 0.5 ″ |
| View diameter | 1.26 ″ |
| Window mounting | UHV-suitably bonded |
| Window thickness | 3 mm |
| Surface quality | 60/40 (scratch/dig) |
| Window material | Calcium fluoride |
| Transmission range | 160-7000 nm |
| View diameter | 32 mm |
