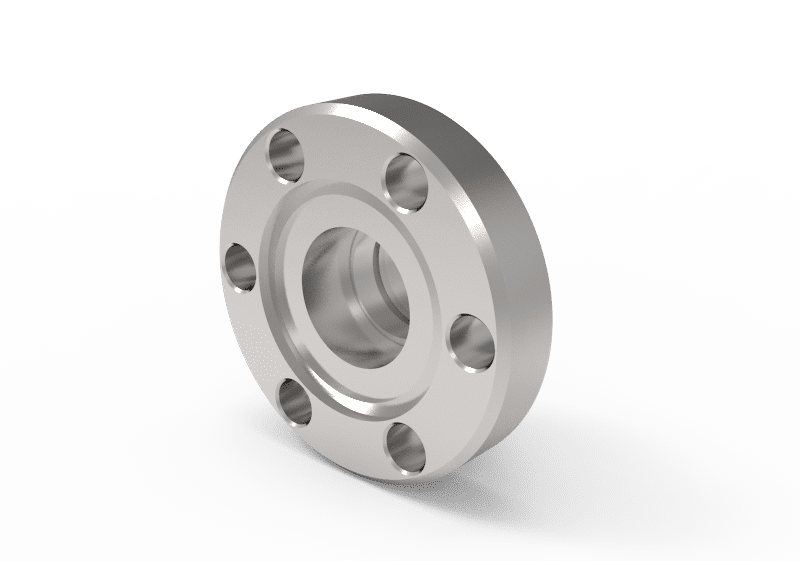

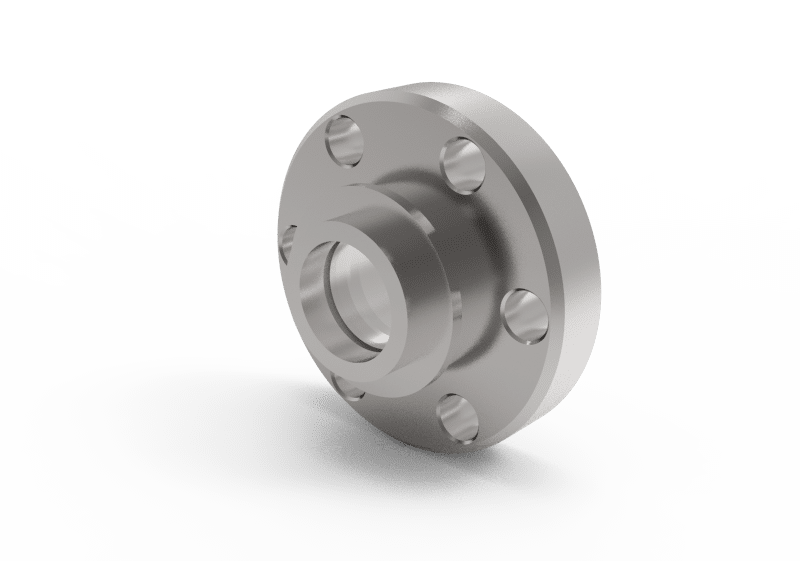

VPCF16CAF2-L Calcium Fluoride Calcium Fluoride
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | UHV extended range viewport, optical, UV/IR |
|---|---|
| Bakeout temperature | 392 °F |
| Max. bakeout temperature | 200 °C |
| Window thickness | 0.079 ″ |
| Maximum heating rate | 20 K/min |
| Article no. | 347143 |
| Connection type | CF |
| Nominal diameter | 16 |
| Leakrate | < 1E-10 mbar ∙ l/s |
| Min. operating temperature | -100 °C |
| Min. operating temperature | -148 °F |
| Max. operating temperature | 200 °C |
| Max. operating temperature | 392 °F |
| Outer diameter | 33,8 mm |
| Outer diameter | 1.331 ″ |
| Length | 7,4 mm |
| Length | 0.291 ″ |
| Length 2 | 14,7 mm |
| Length 2 | 0.579 ″ |
| View diameter | 0.413 ″ |
| Window mounting | Metal Seal |
| Window thickness | 2 mm |
| Surface quality | 40/20 (scratch/dig) |
| Window material | Calcium fluoride |
| Transmission range | 160-7000 nm |
| View diameter | 10,5 mm |
| Parallelism | < 3' |
