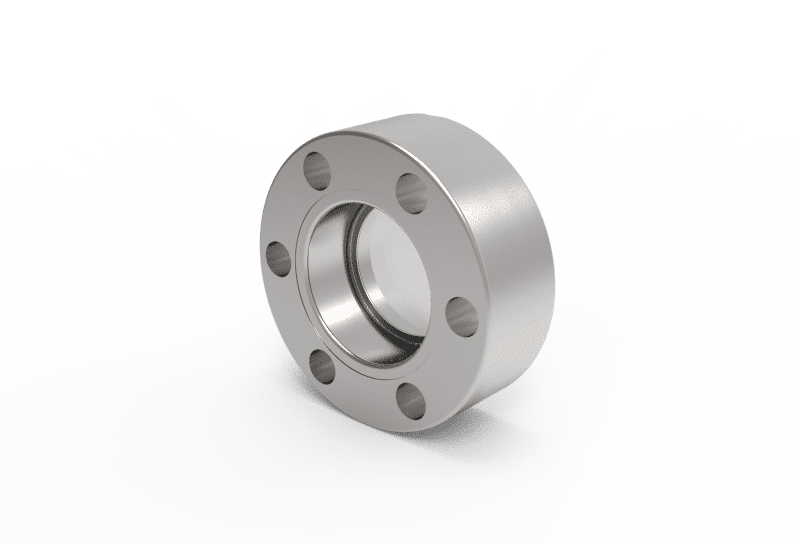

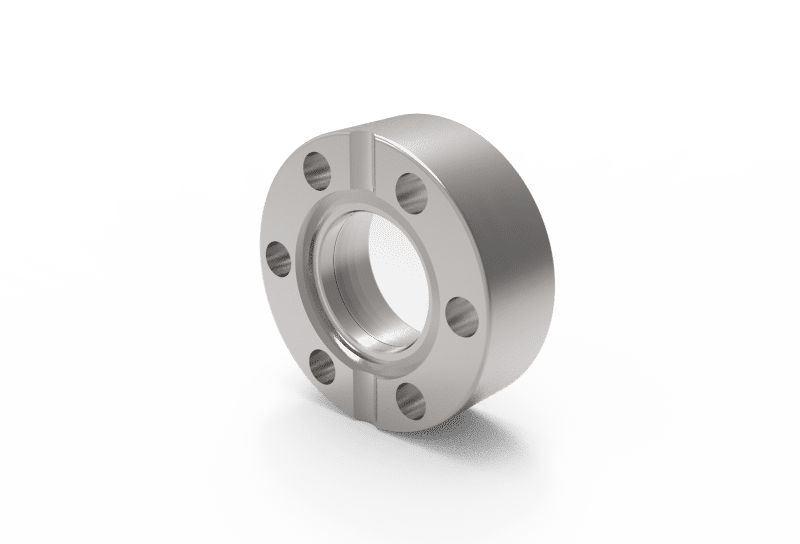

VPCF16B-L-ITO Viewports with ITO-coating Viewports with ITO-coating
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | UHV borosilicate viewport, ITO-coated |
|---|---|
| Bakeout temperature | 662 °F |
| Max. bakeout temperature | 350 °C |
| Window thickness | 0.039 ″ |
| Maximum heating rate | 3 K/min |
| Coating type | ITO |
| Article no. | 363661 |
| Connection type | CF |
| Nominal diameter | 16 |
| Leakrate | < 1E-10 mbar ∙ l/s |
| Min. operating temperature | -20 °C |
| Min. operating temperature | -4 °F |
| Max. operating temperature | 350 °C |
| Max. operating temperature | 662 °F |
| Outer diameter | 34 mm |
| Outer diameter | 1.339 ″ |
| Length | 12,7 mm |
| Length | 0.5 ″ |
| View diameter | 0.591 ″ |
| Window mounting | Thermally Fused |
| Window thickness | 1 mm |
| Window material | Borosilicate |
| Transmission range | appr. 400 - 2500 nm |
| View diameter | 15 mm |
| Purity class | PCS |
