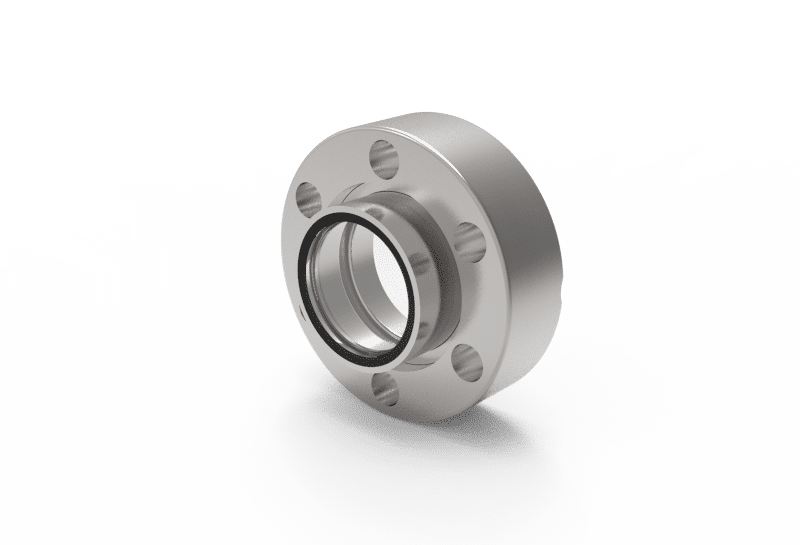

VPCF16B-K-1ALU AluVaC® Optics AluVaC® Optics
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | AluVaC® Optics, UHV, non-magnetic |
|---|---|
| Bakeout temperature | 248 °F |
| Max. bakeout temperature | 120 °C |
| Window thickness | 0.108 ″ |
| Maximum heating rate | 5 K/min |
| Article no. | 360302 |
| Connection type | CF |
| Nominal diameter | 16 |
| Leakrate | < 1E-10 mbar ∙ l/s |
| Max. operating temperature | 120 °C |
| Max. operating temperature | 248 °F |
| Outer diameter | 34 mm |
| Outer diameter | 1.339 ″ |
| Length | 10,2 mm |
| Length | 0.402 ″ |
| Length 2 | 15,2 mm |
| Length 2 | 0.598 ″ |
| View diameter | 0.512 ″ |
| Window mounting | UHV-suitably bonded |
| Window thickness | 2,75 mm |
| Window material | Borosilicate |
| Transmission range | appr. 400 - 2500 nm |
| View diameter | 13 mm |
| Purity class | PCS |
