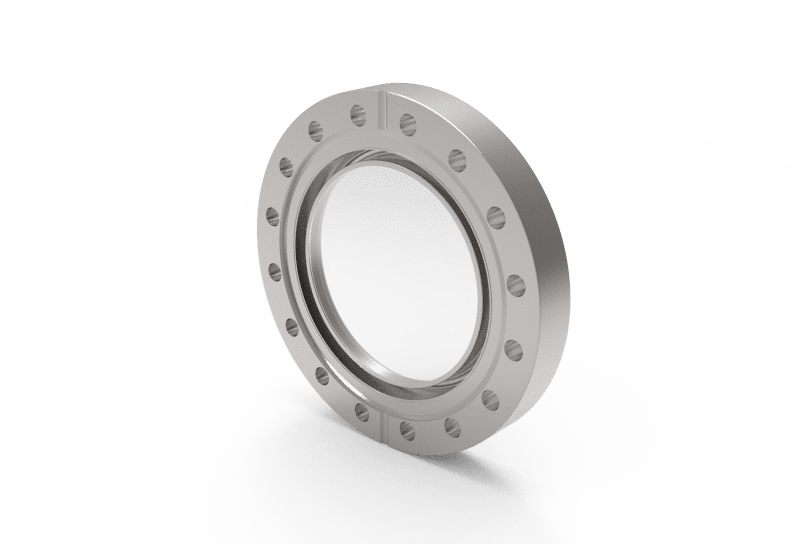

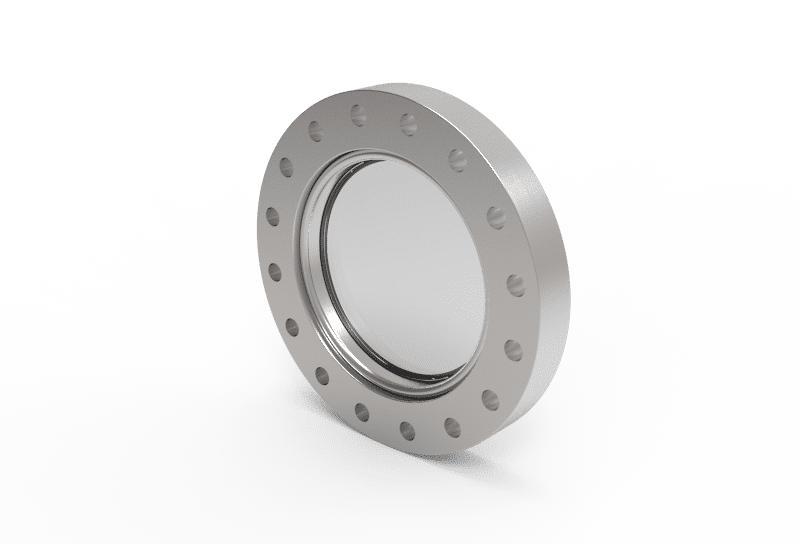

VPCF100B-L Standard CF Standard CF
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | UHV borosilicate viewport, standard |
|---|---|
| Bakeout temperature | 662 °F |
| Max. bakeout temperature | 350 °C |
| Window thickness | 0.157 ″ |
| Maximum heating rate | 3 K/min |
| Article no. | 303072 |
| Connection type | CF |
| Nominal diameter | 100 |
| Leakrate | < 1E-10 mbar ∙ l/s |
| Min. operating temperature | -20 °C |
| Min. operating temperature | -4 °F |
| Max. operating temperature | 350 °C |
| Max. operating temperature | 662 °F |
| Outer diameter | 152 mm |
| Outer diameter | 5.984 ″ |
| Length | 19,5 mm |
| Length | 0.768 ″ |
| Length 2 | 20,5 mm |
| Length 2 | 0.807 ″ |
| View diameter | 3.504 ″ |
| Window mounting | Thermally Fused |
| Window thickness | 4 mm |
| Window material | Borosilicate |
| Transmission range | appr. 400 - 2500 nm |
| View diameter | 89 mm |
| Purity class | PCS |
