Varian Agilent 536 Thermocouple Gauge Tube Sensor with Baffle, 1/8 in. male NPT Flange, SS, L6141303
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Save 14%

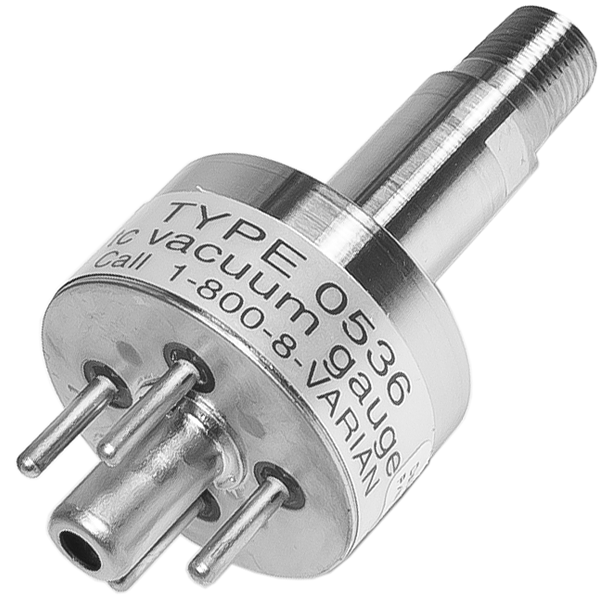

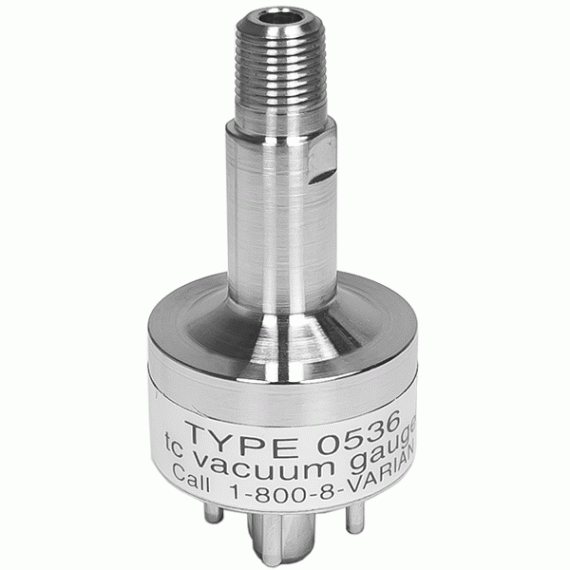

This is a Varian 536 Thermocouple Gauge Tube Sensor, 1/8 in. male NPT Flange, 304L Stainless Steel, With the Addition of a Baffle, Pressure Range: 1 × 10-3 torr to 2 torr, (1 x 10-3 mbar to 2.7 mbar). Maximum bakeout temperature: 150 °C. The 536 Thermocouple Gauge Tube is a welded 304 stainless
steel version of the 531 with an additional baffle that greatly
extends the sensor life when exposed to condensable gases in
demanding applications.
It provides a continuous and repeatable indication of pressures. The thermocouple and heater are noble metal to minimize any possible affect of contaminants on gauge performance. The Thermocouple gauge is offered with a variety of flange connectors and is easily interfaced with Varian Agilent XGS-600 gauge controller for integration in a complex vacuum system, or for use as a stand-alone pressure measurement tool. NOTE: There are 2 D-Bus Connectors on the XGS-600 Dual Convection Thermocouple Card. Only 1 Thermocouple Gauge can be used per D-Bus connector. No Y connector I/O cables allowed.
It provides a continuous and repeatable indication of pressures. The thermocouple and heater are noble metal to minimize any possible affect of contaminants on gauge performance. The Thermocouple gauge is offered with a variety of flange connectors and is easily interfaced with Varian Agilent XGS-600 gauge controller for integration in a complex vacuum system, or for use as a stand-alone pressure measurement tool. NOTE: There are 2 D-Bus Connectors on the XGS-600 Dual Convection Thermocouple Card. Only 1 Thermocouple Gauge can be used per D-Bus connector. No Y connector I/O cables allowed.
Can be used with the following controllers:
- Varian Multi-Gauge Controller
- Varian Senn Torr Gauge Controller
- Varian XGS 600 Gauge Controller
