ThermoTek Part Number: 0P9T257P20.

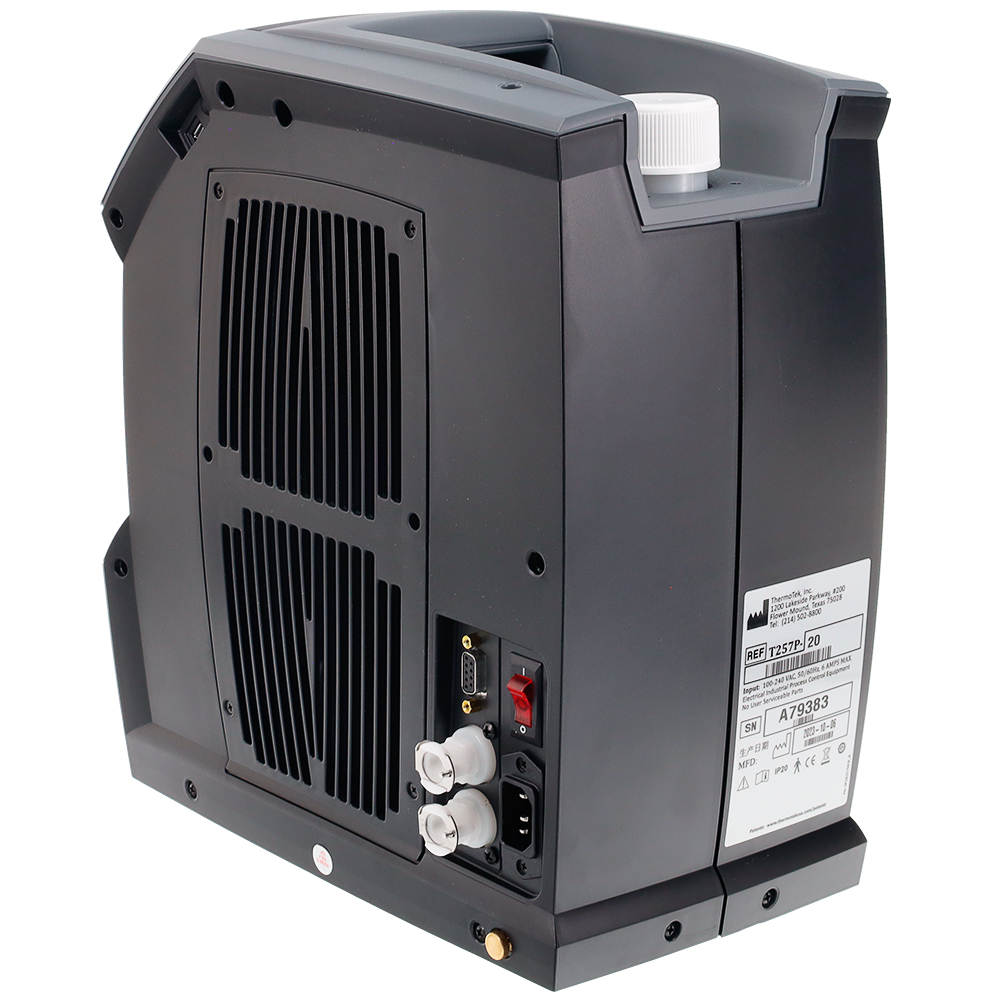

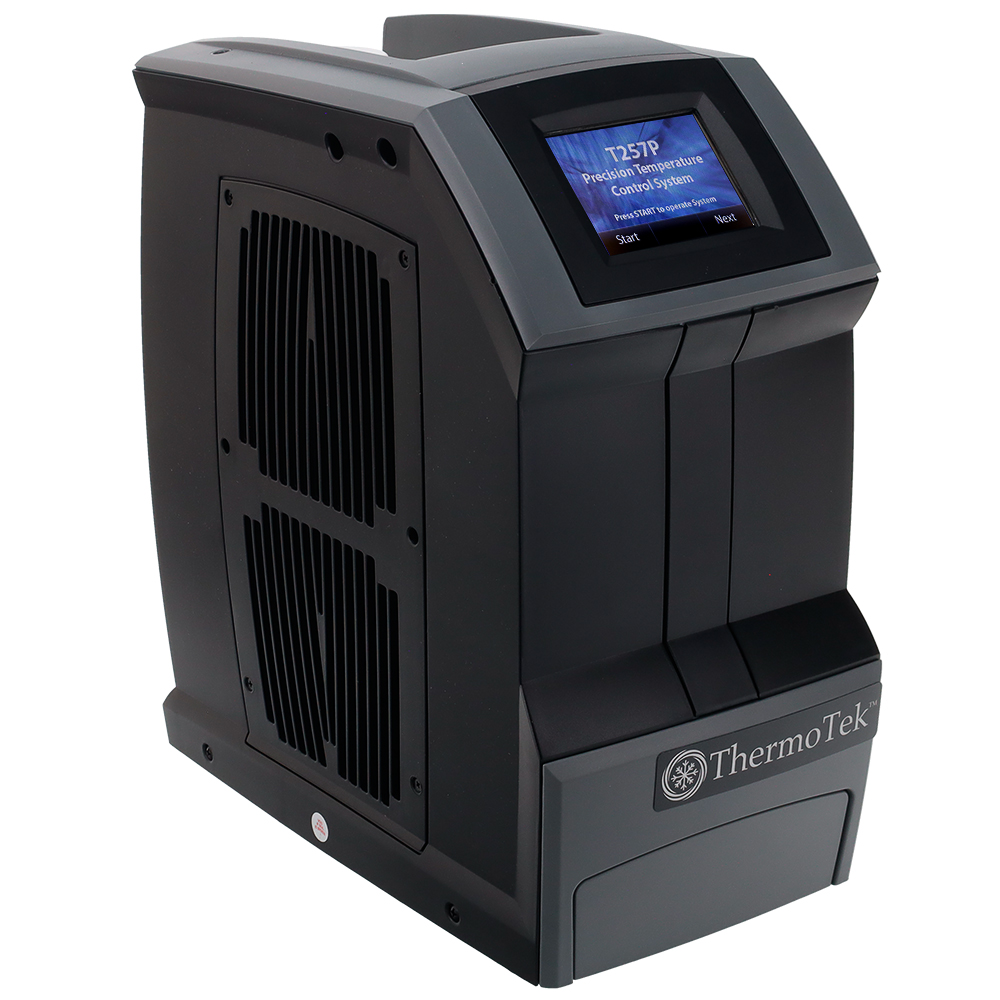

The T257P is a compact thermoelectric water chiller that offers 210 watts of cooling with a variable speed 21.75 psi centrifugal pump. This unit has a touch screen interface, is solid-state and contains no refrigerant or compressor, has low noise and vibration, and has excellent temperature stability of ±0.1°C at constant ambient temp. The thermoelectric chip allows for both heating and cooling applications, with a temperature range of -5°C to +45°C. This chiller is excellent for laboratory use, cooling of laser systems which require precise temperature control, cooling of small vacuum chamber components, defense applications and much more. For connectivity, the unit is compatible with USB and RS-23.
-
FEATURES
- 210 Watts cooling capacity
- 21.75 psi / 3.8 LPM centrifugal pump
- Variable speed pump
- Weighs only 16 lbs (7.3 kg)
- Touch screen interface
- Low noise and vibration
- Integrated carry handle
- Universal power supply
- Leak-free QD fittings
- USB and RS-232 connectivity
-
APPLICATIONS
- Laboratory
- Laser Cooling
- X-Ray Systems
- Medical Equipment
- Analytical Equipment
- Vacuum Chamber Application
- Defense Applications
- Semiconductor Applications
-
SYSTEM PERFORMANCE
Thermal Performance: Up to 210 Watts cooling @ 0° DT
Stability: +/- 0.1°C @ >=0.6 LPM flow at constant load & constant ambient temp
Flow Rate Availability: up to 4.0 LPM (open flow water)
Pressure Availability: up to 1.5 Bar (21.75 psi) max pressure
Temperature Range: -5°C to +45°C
Input Voltage: 100—240 VAC 50 / 60 Hz
Input Power: 600 Watts max
