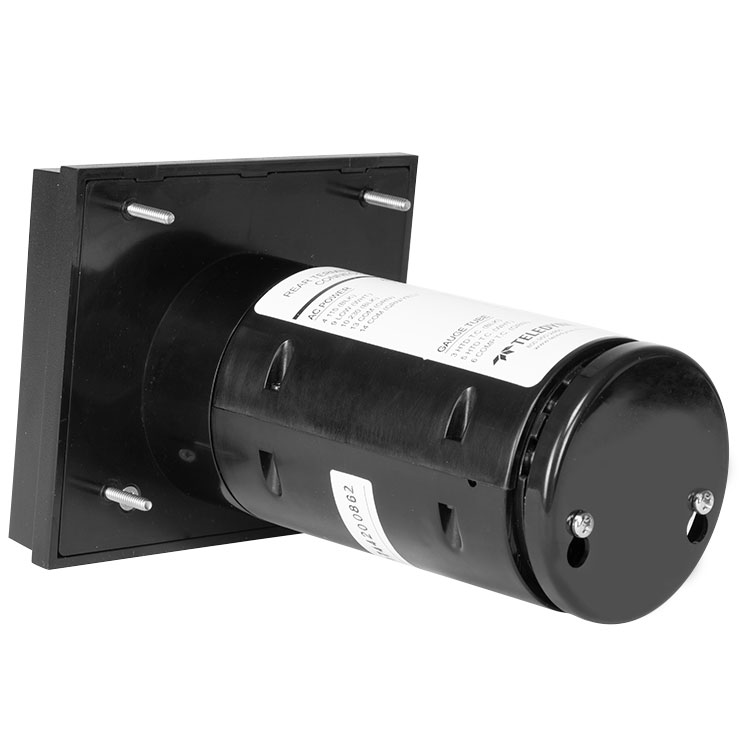

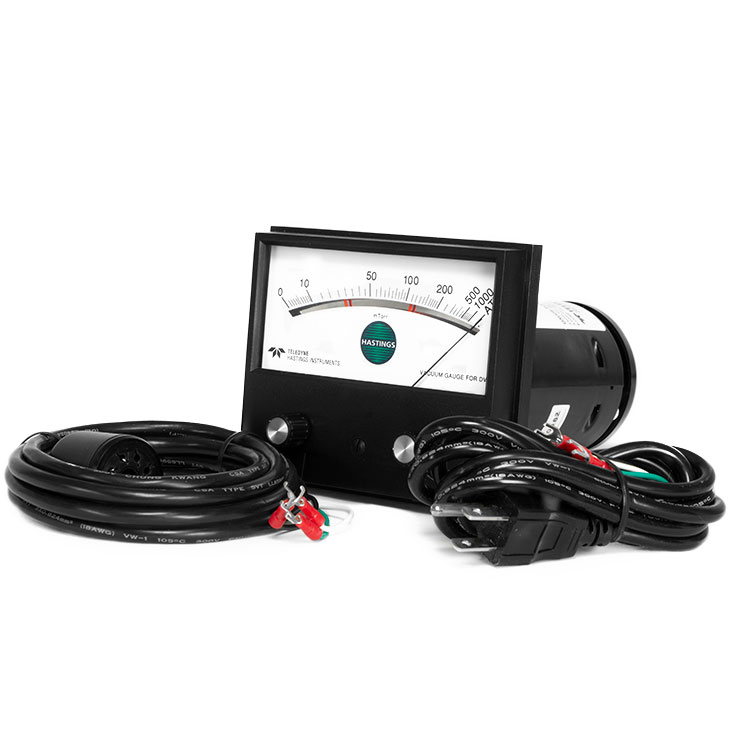

Thermocouple Vacuum Gauge Controller CVT26A-0-0 with 2 Set Points & Relays for Process Control, 0-1000 mTorr, 1-Phase 115 VAC, Panel Mount, For DV-6 Sensor Thermocouple Tubes. (PN CVT26A-0-0)
These Teledyne Hastings Analog CVT26A (panel mount) thermocouple vacuum gauge controllers are matched for the DV-6 thermocouple vacuum gauge tubes and operate on 115VAC. They measure pressure between the range of 0-1000 mTorr . The Teledyne Hastings Analog CVT26A thermocouple controllers are self-contained instruments that offer extreme versatility for most vacuum applications. The electronic design assures long life and minimal maintenance. They are fully automatic, continuous-reading instruments for unlimited vacuum applications. These controllers have 2 set points that are durable and have 5 amp single pole double throw relays which can be configured normally open or normally closed.
These instruments utilize Teledyne's rugged but sensitive noble metal TC gauge sensor tubes that are designed specifically for each range. Tubes are matched and interchangeable without calibration adjustments. They are compensated for temperature and rate of temperature change and are corrosion-resistant. These VacuuGaugege Controllers are compatible with all the Teledyne DV-6 Sensor Thermocouple Tubes, Sold on this website, See RELATED ARTICLES below:
Users Manuals and Spec Sheets .pdf's available for download below at AVAILABLE DOWNLOADS:These instruments utilize Teledyne's rugged but sensitive noble metal TC gauge sensor tubes that are designed specifically for each range. Tubes are matched and interchangeable without calibration adjustments. They are compensated for temperature and rate of temperature change and are corrosion-resistant. These VacuuGaugege Controllers are compatible with all the Teledyne DV-6 Sensor Thermocouple Tubes, Sold on this website, See RELATED ARTICLES below:
