Tee KF-25 Vacuum Fittings, ISO-KF Flange Size NW-25, Aluminum Machined

$13345
In stock
+
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price

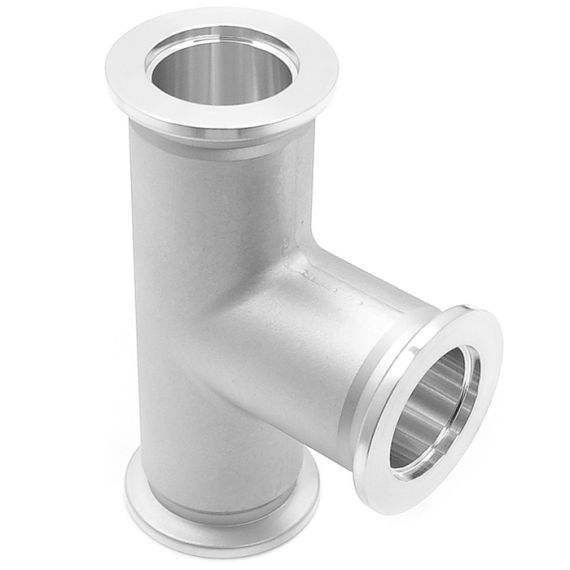

Tee KF-25 Vacuum Fittings, ISO-KF Flange Size NW-25, Aluminum, Machined.

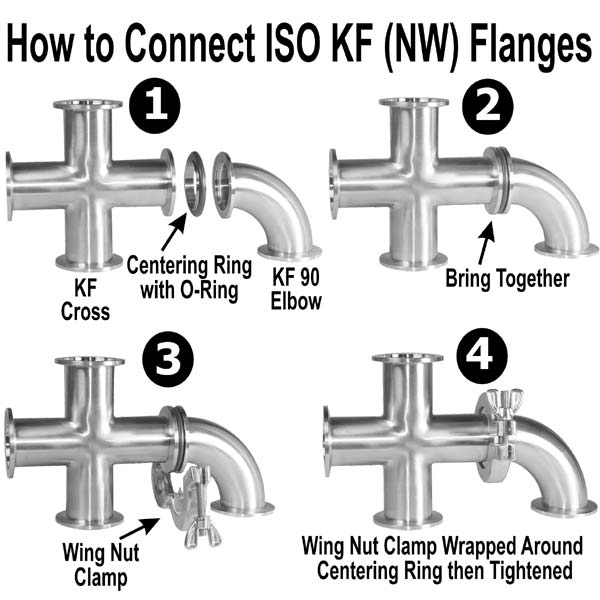

These KF-25 Tee fittings follow ISO-KF standards and have a flange size of NW-25. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of Aluminum, Machined.

Tee
ISO-KF Flange Size: NW-25

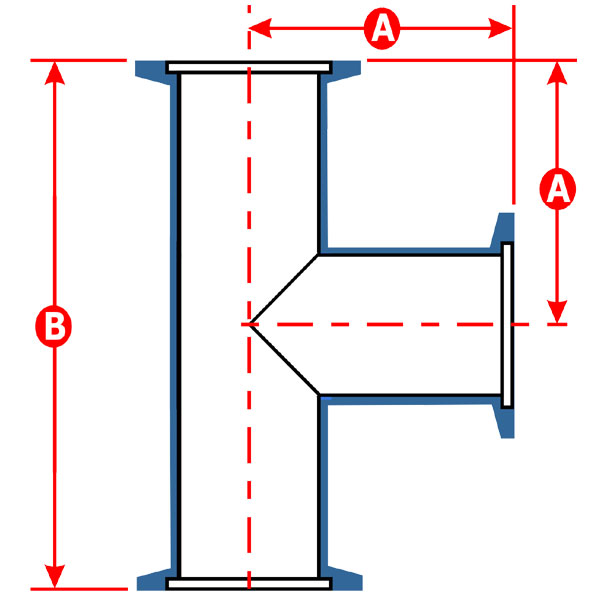

Common Dimensions: A=1.97" (50mm), B=3.94" (100mm)

P6103432.sldprt (P6103432.sldprt, 230 Kb) [Download]

P6103432.step (P6103432.step, 132 Kb) [Download]

Common_Vacuum_Fittings-Selection_and_Assembly_Guide.pdf (Common_Vacuum_Fittings-Selection_and_Assembly_Guide.pdf, 7,587 Kb) [Download]

Ideal-Vacuum-Company-Image_med.pdf (Ideal-Vacuum-Company-Image_med.pdf, 7,973 Kb) [Download]
