SWIFT-SEAL: CF Conflat to Compression Port Adapter, CF 3.375 to I.D. 1 1/8 in., Stainless Steel
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price

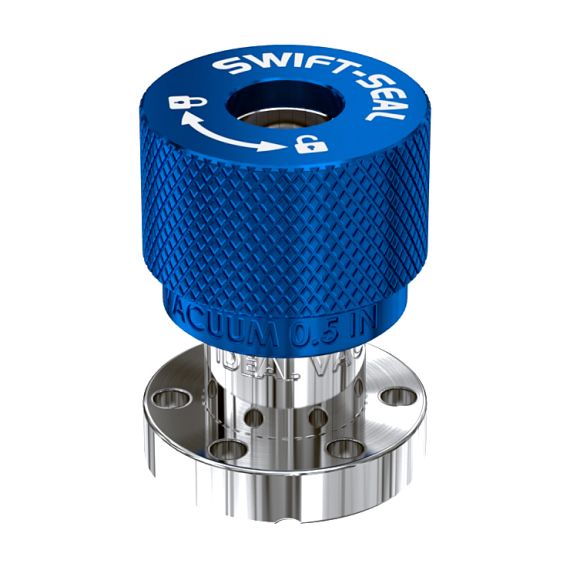

This adapter converts a CF 3.375 flanged fitting to a I.D. 1 1/8 in. compression port. Compression ports are typically used to make quick connections to tubes and half nipples, commonly found on gauges, instruments, and gas supply lines.
"SWIFT-SEAL" CF adapters create a leak-proof seal when the knurled ring is tightened, allowing the uniquely shaped inner ring to both wedge and compress the O-ring circumferentially around the tube. An inner circlip can be re-located to any of the 3 indexed slots (or removed altogether), to make fast, repeatable tube insertions into the adapter; required for repeated, quick changeouts. All components can be easily dismantled for routine service. SWIFT-SEAL adapters are made of 304 Stainless Steel and anodized aluminum.
"SWIFT-SEAL" CF adapters create a leak-proof seal when the knurled ring is tightened, allowing the uniquely shaped inner ring to both wedge and compress the O-ring circumferentially around the tube. An inner circlip can be re-located to any of the 3 indexed slots (or removed altogether), to make fast, repeatable tube insertions into the adapter; required for repeated, quick changeouts. All components can be easily dismantled for routine service. SWIFT-SEAL adapters are made of 304 Stainless Steel and anodized aluminum.

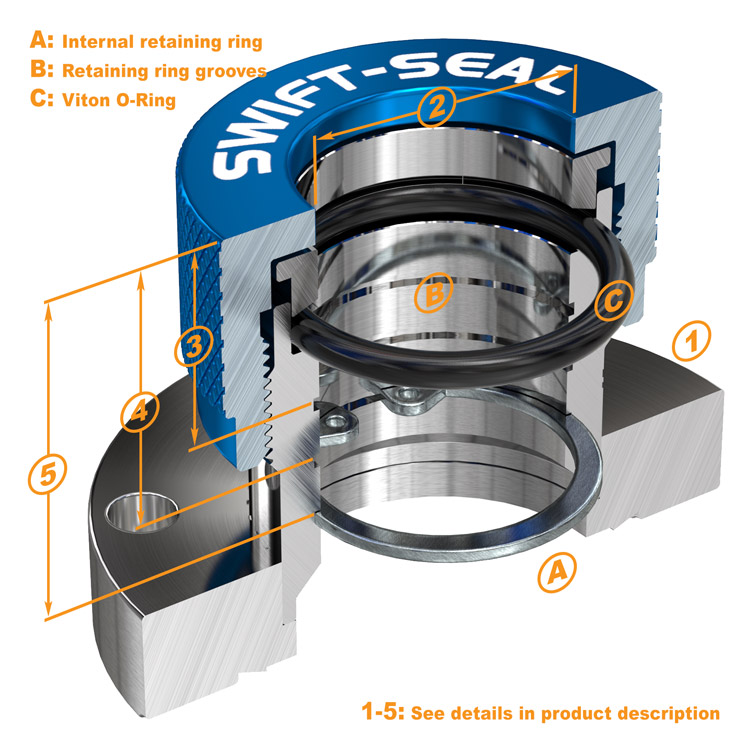

Dimension Details:
1 = CF 3.375 in.
2 = 1 1/8 in.
3 = 0.7 in. (18 mm)
4 = 1.00 in. (25.6 mm)
5 = 1.2 in. (31 mm)
