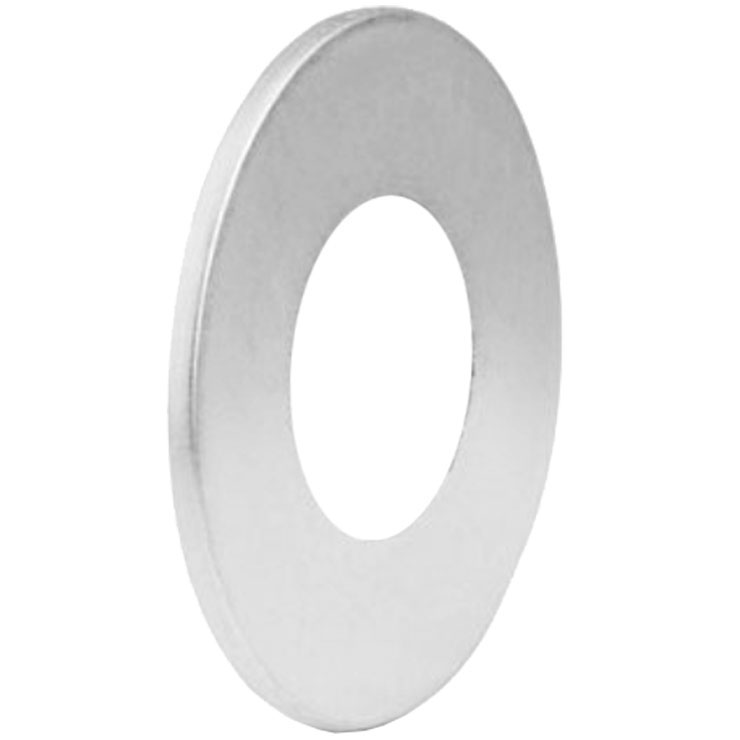

This Swagelok® VCR® Nonretained Gasket is made of Silver Plated Nickel. Swagelok Part Number: NI-8-VCR-2.
These VCR (Vacuum Coupling Radiation) fittings and components are precision manufactured and offer a leak-tight, metal on metal seal. They can be used for any fluid flow application and provide leak-tight service from vacuum to positive pressure.
Polished surface finish and high purity materials virtually eliminate these fittings as a source of system contamination. The VCR fitting design has been tested to maximum leak rate of 4x10-9 std cm3/s with silver-plated-copper gaskets, and to a maximum leak rate of 4x10-11 std cm3/s with unplated (Ni, Cu or 316L SS) gaskets.
These VCR (Vacuum Coupling Radiation) fittings and components are precision manufactured and offer a leak-tight, metal on metal seal. They can be used for any fluid flow application and provide leak-tight service from vacuum to positive pressure.
Polished surface finish and high purity materials virtually eliminate these fittings as a source of system contamination. The VCR fitting design has been tested to maximum leak rate of 4x10-9 std cm3/s with silver-plated-copper gaskets, and to a maximum leak rate of 4x10-11 std cm3/s with unplated (Ni, Cu or 316L SS) gaskets.

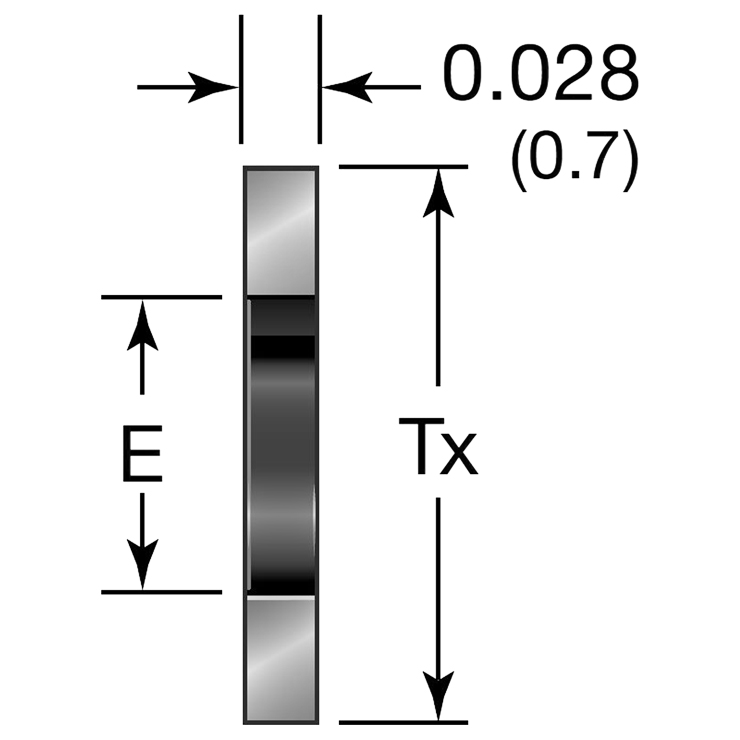

Specifications and Dimensions:
- Silver Plated Nickel
- VCR Size: 8
- Inch Size: 1/2
- E: 0.44 in (11.2 mm)
- Tx: 0.78 in (19.8 mm)
Swagelok, VCR-TM Swagelok Company
