Swagelok VCR 4 Face Seal Fitting, 1/4 in. Gasket, PTFE Plastic, Non-Retained Style Gasket. PN: T-4-VCR-2
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Swagelok Part Number: T-4-VCR-2.

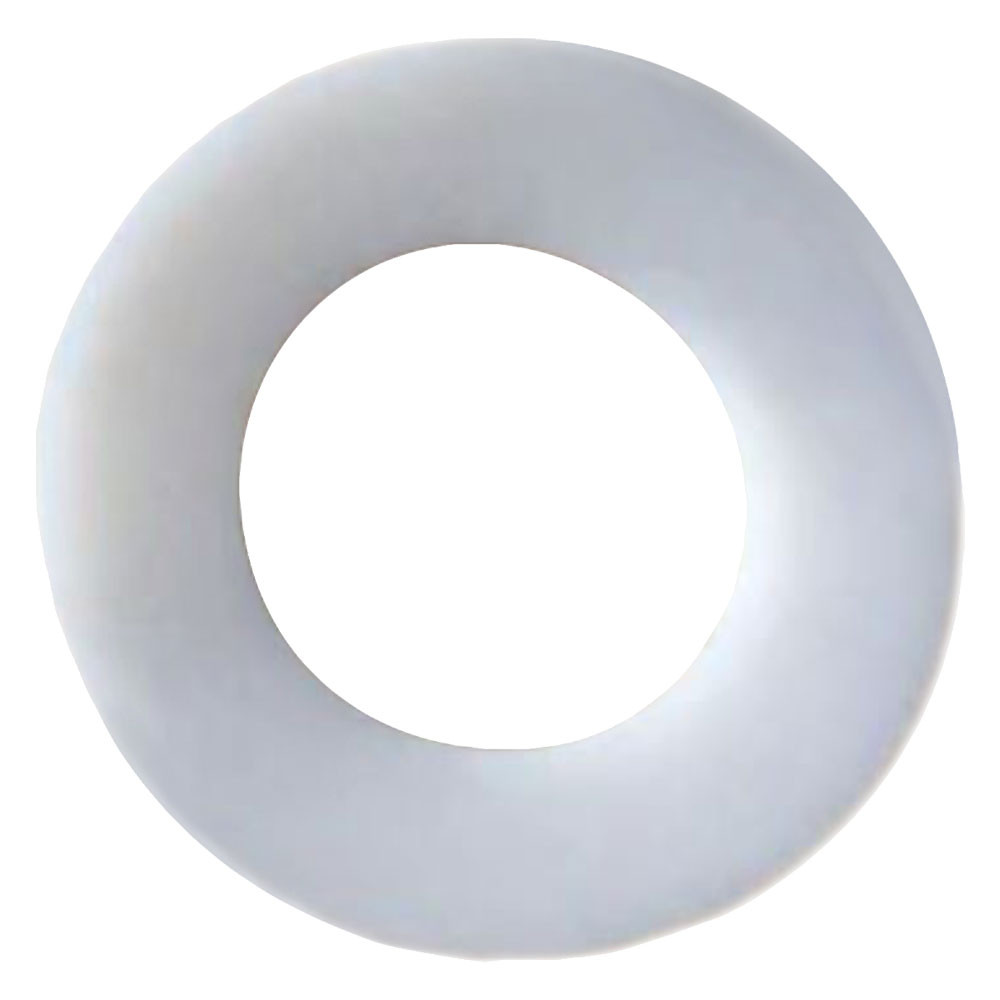

This Swagelok® VCR® Non-retained gasket is made of PTFE plastic which maintains a greater flex-life. PTFE are among the most chemically inert materials available. Standard cleaning and packaging (SC-10).
These VCR (Vacuum Coupling Radiation) fittings and components are precision manufactured and offer a leak-tight, metal on metal seal. They can be used for any fluid flow application and provide leak-tight service from vacuum to positive pressure.
Polished surface finish and high purity materials virtually eliminate these fittings as a source of system contamination. The VCR fitting design has been tested to maximum leak rate of 4x10-9 std cm3/s with silver-plated-copper gaskets, and to a maximum leak rate of 4x10-11 std cm3/s with unplated (Ni, Cu or 316L SS) gaskets.
These VCR (Vacuum Coupling Radiation) fittings and components are precision manufactured and offer a leak-tight, metal on metal seal. They can be used for any fluid flow application and provide leak-tight service from vacuum to positive pressure.
Polished surface finish and high purity materials virtually eliminate these fittings as a source of system contamination. The VCR fitting design has been tested to maximum leak rate of 4x10-9 std cm3/s with silver-plated-copper gaskets, and to a maximum leak rate of 4x10-11 std cm3/s with unplated (Ni, Cu or 316L SS) gaskets.
Specifications and Dimensions:
- PTFE Plastic
- VCR Size: 4
- Inch Size: 1/4
- E: 0.22 in (5.6 mm)
- Tx: 0.47 in (11.9 mm)
Swagelok, VCR-TM Swagelok Company
