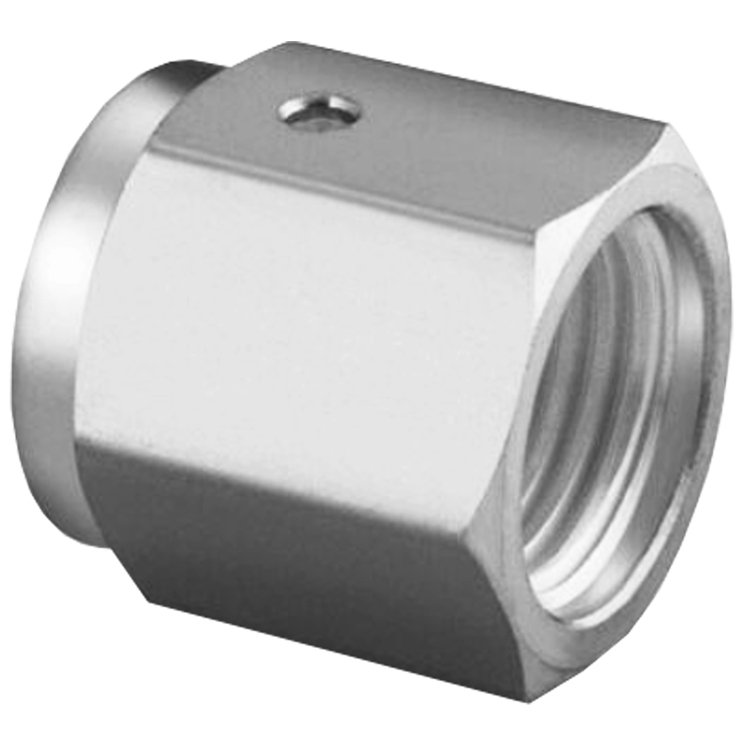

This Swagelok® VCR® Female Nut fitting is made of 316 Stainless Steel. Threads are Silver plated to prevent galling and seizing of fitting when tightened. Swagelok Part Number: SS-2-VCR-1.
These VCR (Vacuum Coupling Radiation) fittings and components are precision manufactured and offer a leak-tight, metal on metal seal. They can be used for any fluid flow application and provide leak-tight service from vacuum to positive pressure.
Polished surface finish and high purity materials virtually eliminate these fittings as a source of system contamination. The VCR fitting design has been tested to maximum leak rate of 4x10-9 std cm3/s with silver-plated-copper gaskets, and to a maximum leak rate of 4x10-11 std cm3/s with unplated (Ni, Cu or SS) gaskets.
These VCR (Vacuum Coupling Radiation) fittings and components are precision manufactured and offer a leak-tight, metal on metal seal. They can be used for any fluid flow application and provide leak-tight service from vacuum to positive pressure.
Polished surface finish and high purity materials virtually eliminate these fittings as a source of system contamination. The VCR fitting design has been tested to maximum leak rate of 4x10-9 std cm3/s with silver-plated-copper gaskets, and to a maximum leak rate of 4x10-11 std cm3/s with unplated (Ni, Cu or SS) gaskets.
Specifications and Dimensions:
- 316 Stainless Steel
- VCR Size: 2
- Inch Size: 1/8
- A: 0.53 in (13.5 mm)
- F: 7/16"
- Tx: 0.21 in (5.3 mm)
Swagelok, VCR-TM Swagelok Company
