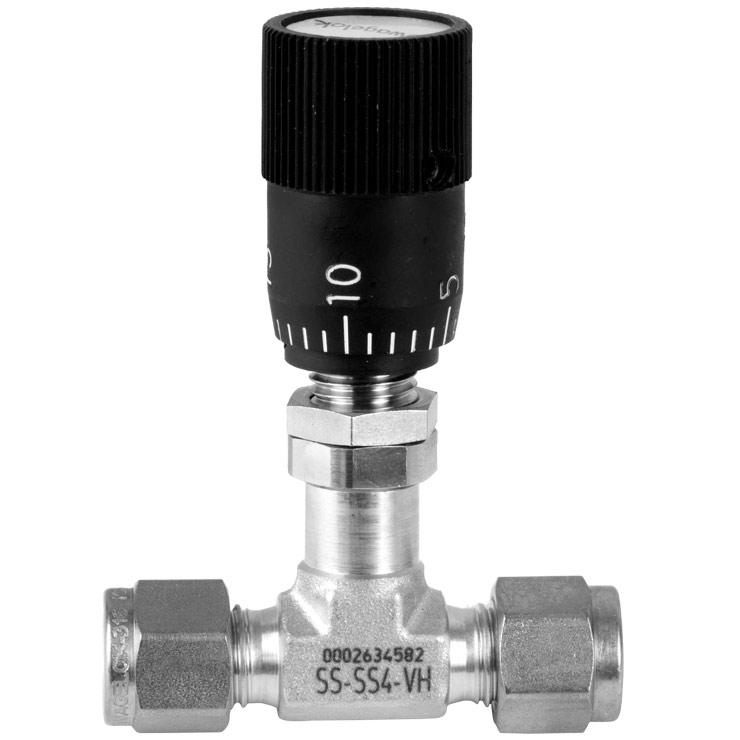

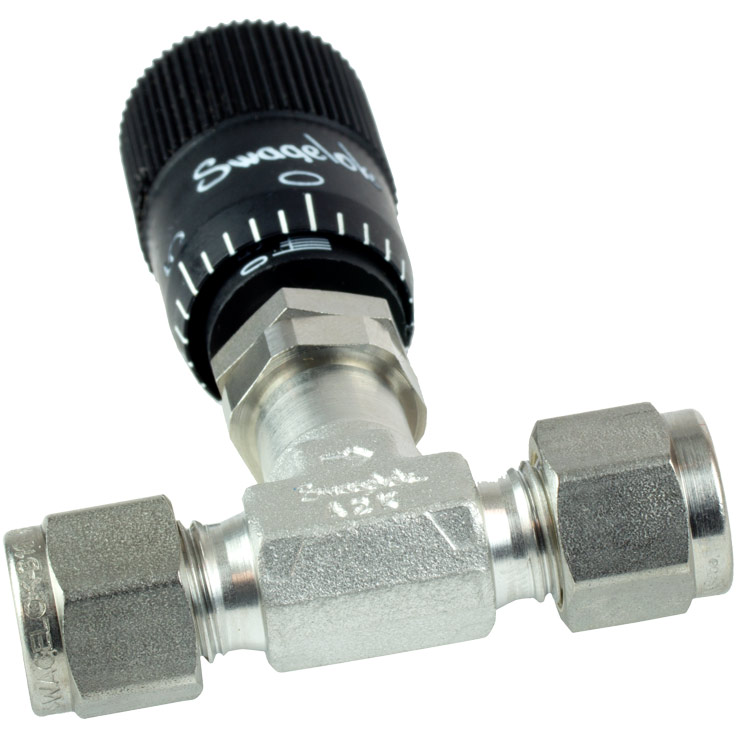

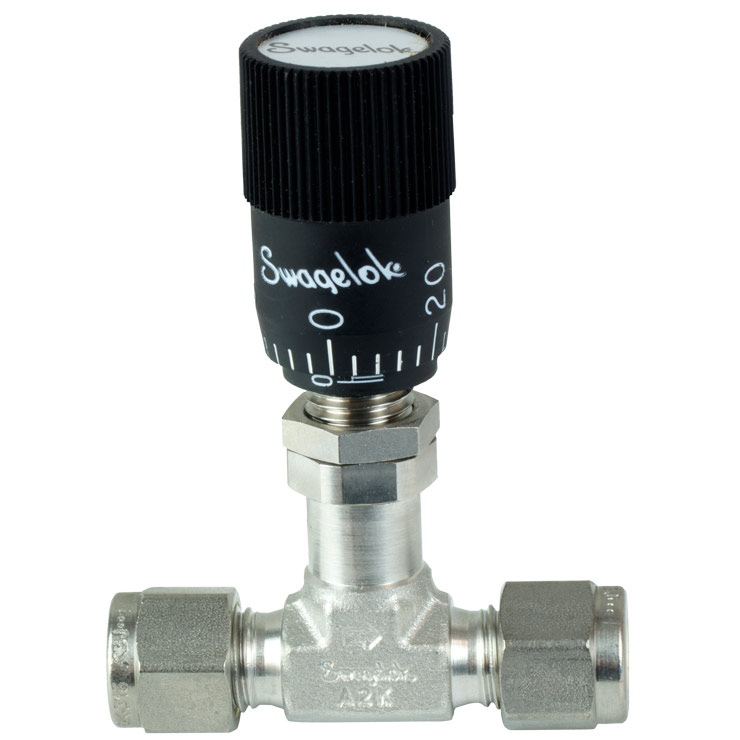

Swagelok Low Flow Metering Valve, 1/4 in. Swagelok Tube Fitting, Vernier Handle, Max 0.004Cv, PN: SS-SS4-VH
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
This Swagelok® S series, low flow metering valve is rated for up to 2000 psig working pressure with a temperature rating of -23 to 204°C (-10 to 400°F). This straight pattern valve is made of forged 316L stainless steel and has standard Swagelok 1/4" tube compression fittings. This valve is also equipped with a vernier handle to help ensure repeatable flow adjustments. The vernier provides accurate readings to 1/25 turn. Factory flow settings are set at 4 to 10 std cm3/min with 15 psig (1.0 bar) inlet pressure. Maximum flow coefficient (Cv) is 0.004 at 10 full turns open.
For more specifications, please see the Metering Valve download.
For more specifications, please see the Metering Valve download.
