Stainless Steel Hole Plug to Fit 1-3/4 inch Diameter Bulkhead Feedthrough Port up to 1 in. Thick, with Viton O-Ring
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price

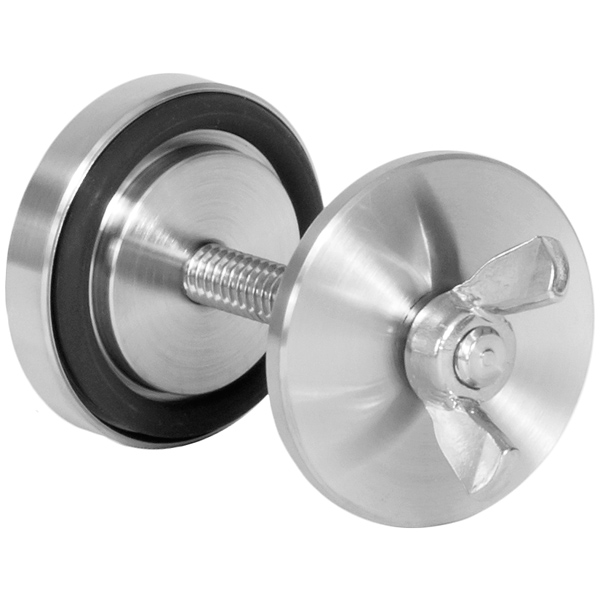

These 304L stainless steel feedthrough hole plugs are designed to seal 1.75 inch diameter bulkhead ports on flat plates or chambers with walls up to 1.0" thick. These hole plugs have Viton O-ring seals and are rated for high vacuum in the 10-8 Torr range.

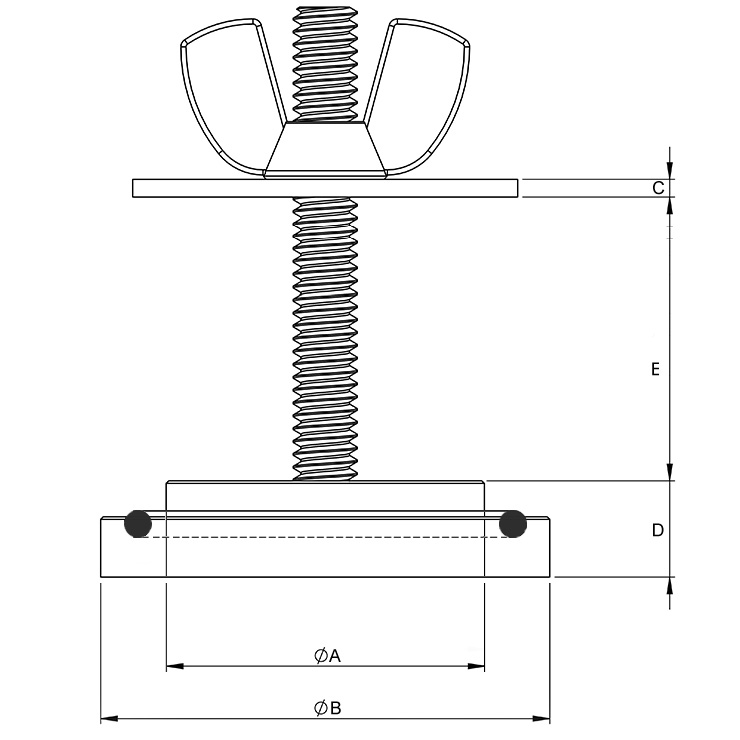

Dimensions:
Dimensions:
- A = 1.74"
- B = 2.5"
- C= .07"
- D = 0.375"
- E = 1.0" Max.
