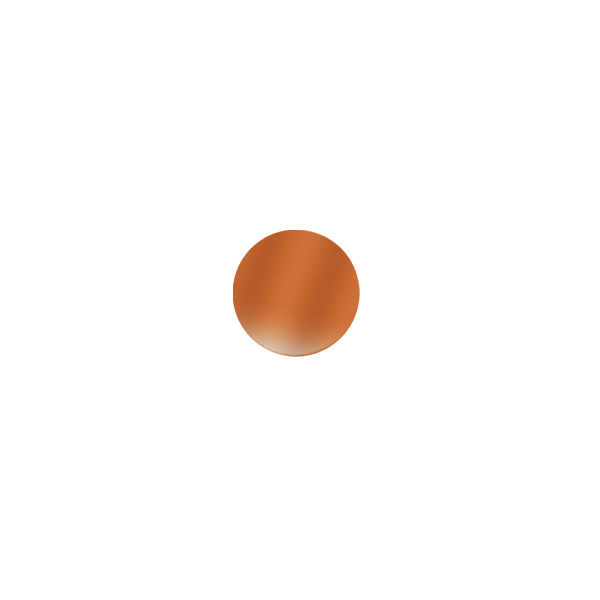

Solid BLANK Conflat Flange (CF) Copper Gaskets CF Size 1-1/3" - 1 each
Blank Conflat Flange (CF) CF Size 1- 1/3" - Quantity 1
For CF Flange Size: CF 1.33 inch (1-1/3")
Blank Copper Gasket Outer Diameter (OD) 0.838"
These Solid Blank copper conflat gaskets fit a conflat flange size of 1 1/3 inches. ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a knife-edge flange to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of High purity, electronic grade oxygen-free copper.
Blank Conflat Flange (CF) CF Size 1- 1/3" - Quantity 1
For CF Flange Size: CF 1.33 inch (1-1/3")
Blank Copper Gasket Outer Diameter (OD) 0.838"
