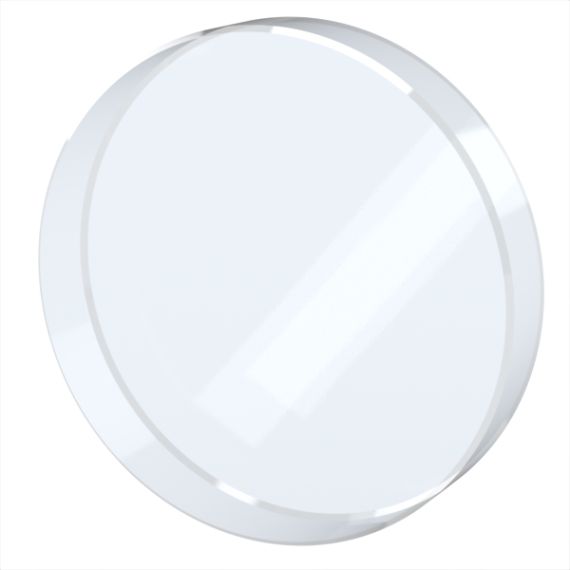

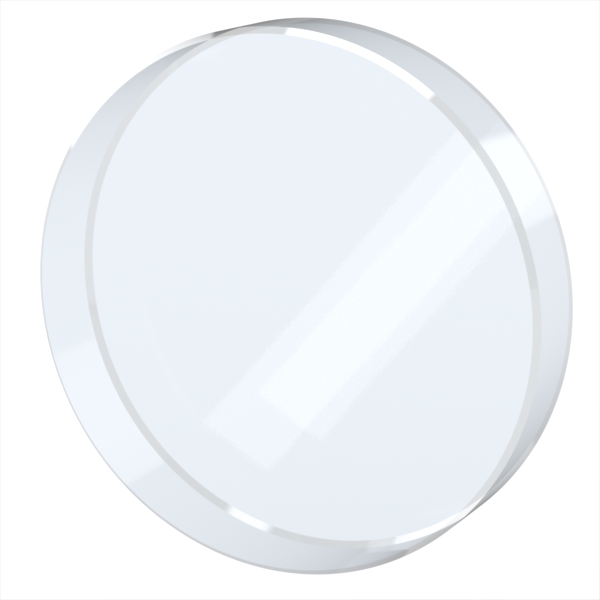

This listing is for the sale of one (1) replacement window with the following characteristics:
These windows are suitable for UV, visible, and IR laser applications. The 0.5° wedge helps prevent unwanted etalon effects, fringe patterns, and cavity feedback. These windows are uncoated for use over their entire optical range. These windows are compatible with Ideal Vacuum's glass gas cells, Habanero reference cell furnace, and Serrano reference cell heater.
Sapphire Properties
- Material: Sapphire (Al2O3).

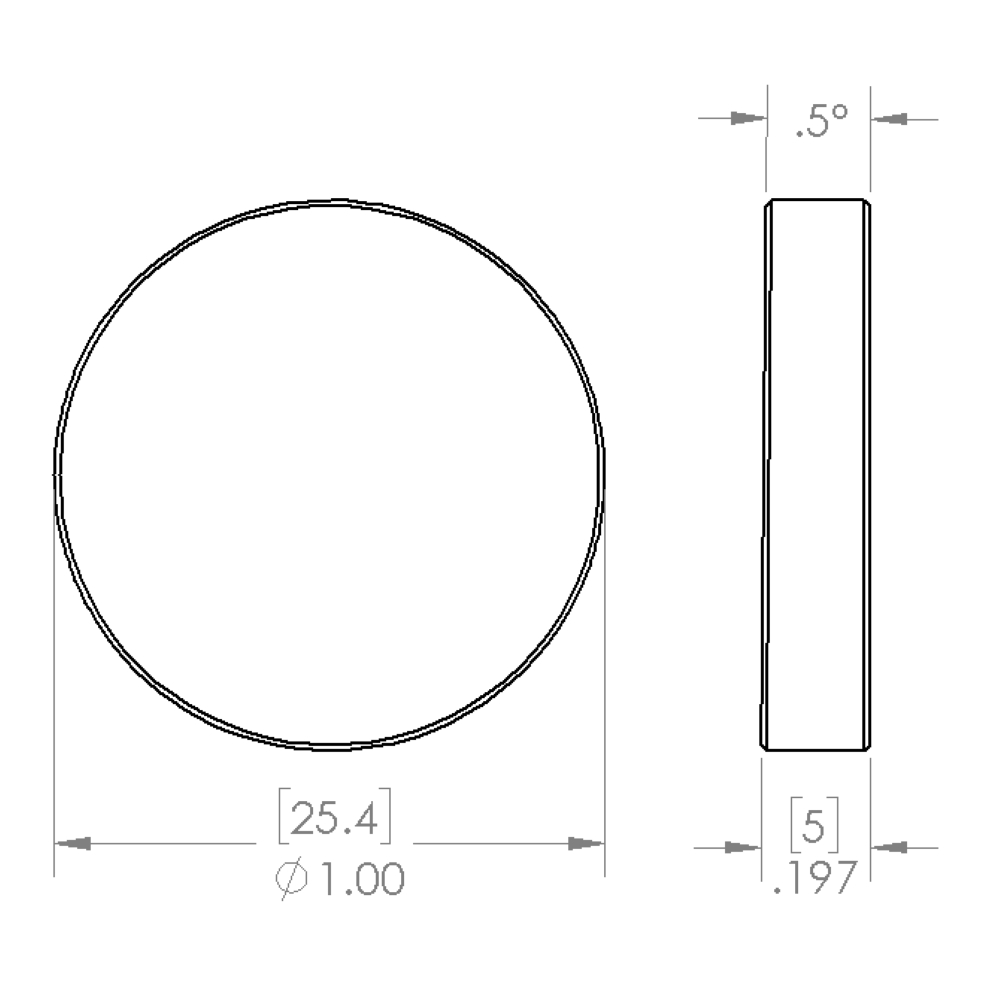

- Dimensions: 1" (25.4 mm) OD, 0.197" (5 mm) Thickness.
- 0.5° Wedge Between Transmitting Surfaces.
- Surface Flatness: λ/2 Over Central 10 mm, λ Over Entire Clear Aperture.
These windows are suitable for UV, visible, and IR laser applications. The 0.5° wedge helps prevent unwanted etalon effects, fringe patterns, and cavity feedback. These windows are uncoated for use over their entire optical range. These windows are compatible with Ideal Vacuum's glass gas cells, Habanero reference cell furnace, and Serrano reference cell heater.
Sapphire Properties
| Optical |
| Chemical behavior of polished surfaces |
