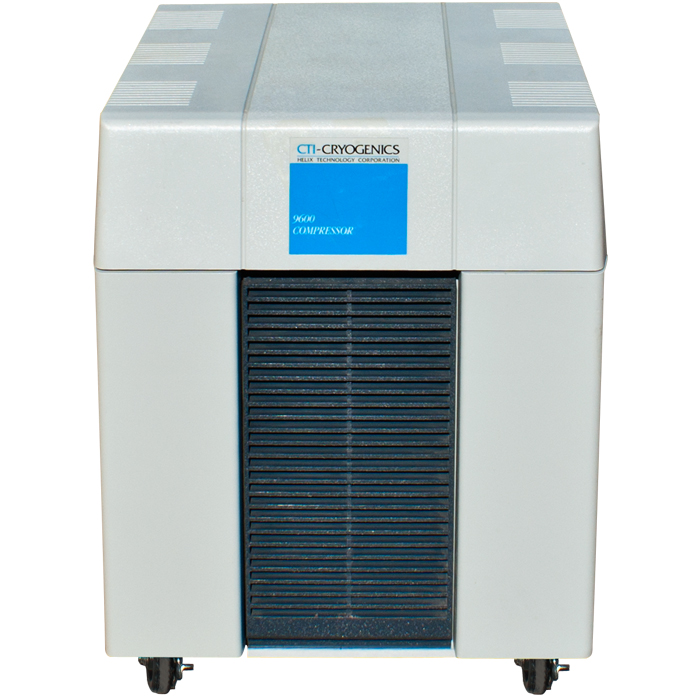

Edwards CTI Cryo-Torr Cryopump 9600 Helium Compressor, 3 Phase, Water Cooled, LOW VOLT 180/230V. PN: 8135717G001
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Save 15%
Edwards Part Number: 8135717G001 replaces obsolete PN: 8135900G001.
For applications, process, maintenance engineers, and scientists who
depend on Cryogenic Compressors in fields such as vacuum coating,
semiconductor production, particle accelerators, sputter deposition
systems and Molecular Beam Epitaxy. The 9600 Compressor is designed expressly for a long usable life, very reliable, and is very easy to use. The 9600 compressor provides outstanding performance with all
Cryo-Torr Cryopumps, On-Board Cryopumps, On-Board Waterpumps,
and On-Board TurboPlus Vacuum Pumps.

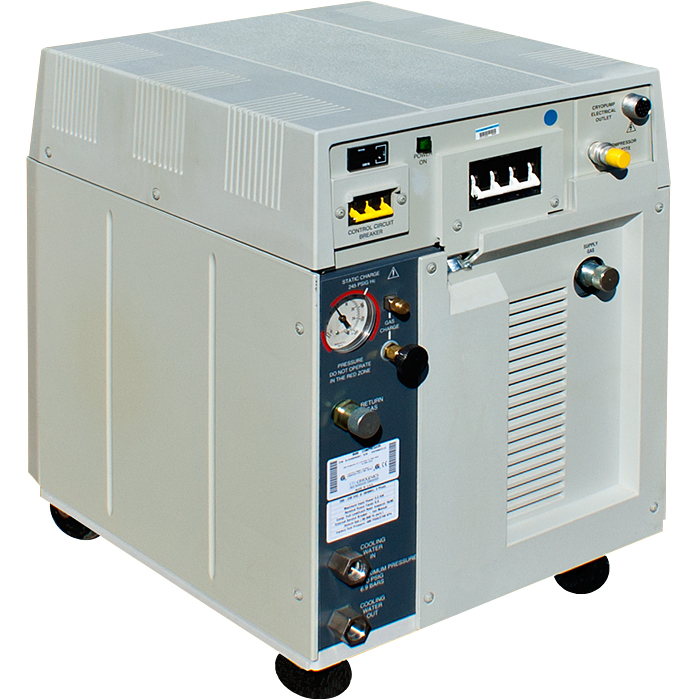

It is a lightweight design, with large casters for easy handling, and its power, helium, and water hookups are all easily accessible for fast installation. The 9600 requires no maintenance beyond a recommended adsorber change once every three years. Circuit protection is provided by a single row of breakers which are easily accessible at the rear panel. See manual for adsorber replacement. Remote controls are supported, giving you the flexibility of remote compressor location (but not included). Has extreme high capacity and efficient design for improved pump performance and fast regenerations. The unit is fully compatible with new and existing CTI-Cryogenics pumping systems. This unit is LOW VOLTAGE, Water Cooled, Three Phase, Input Voltage 180-230 V, 50/60 Hz, 3 Phase C series On-Board Power. Has On-Board power outputs to drive standard 1-phase(2-phase) motor On-Board and Cryo-Torr and Cryodyne pumps.
A Users and Configuration Manual is provided by downloading the pdf.
Can be used with the the following Cryo-Pumps
It is a lightweight design, with large casters for easy handling, and its power, helium, and water hookups are all easily accessible for fast installation. The 9600 requires no maintenance beyond a recommended adsorber change once every three years. Circuit protection is provided by a single row of breakers which are easily accessible at the rear panel. See manual for adsorber replacement. Remote controls are supported, giving you the flexibility of remote compressor location (but not included). Has extreme high capacity and efficient design for improved pump performance and fast regenerations. The unit is fully compatible with new and existing CTI-Cryogenics pumping systems. This unit is LOW VOLTAGE, Water Cooled, Three Phase, Input Voltage 180-230 V, 50/60 Hz, 3 Phase C series On-Board Power. Has On-Board power outputs to drive standard 1-phase(2-phase) motor On-Board and Cryo-Torr and Cryodyne pumps.
A Users and Configuration Manual is provided by downloading the pdf.
Can be used with the the following Cryo-Pumps
- Cryo-Torr 100, 7, 8, 8F, 10
