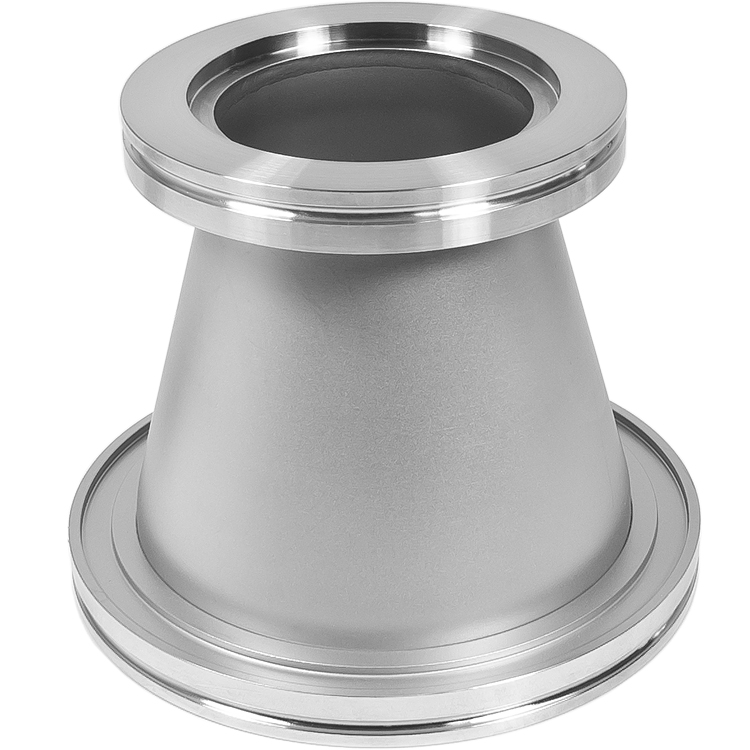

Reducer Conical, NW-80 to NW-100 Vacuum Fittings, ISO-LF Large Flange Sizes LF-80 to LF-100, Stainless Steel
Reducer conical, NW-80 to NW-100 Vacuum Fittings, ISO-LF Large Flange Sizes LF-80 to LF-100, Stainless Steel
ISO-LF Flange Size: NW-80 to NW-100

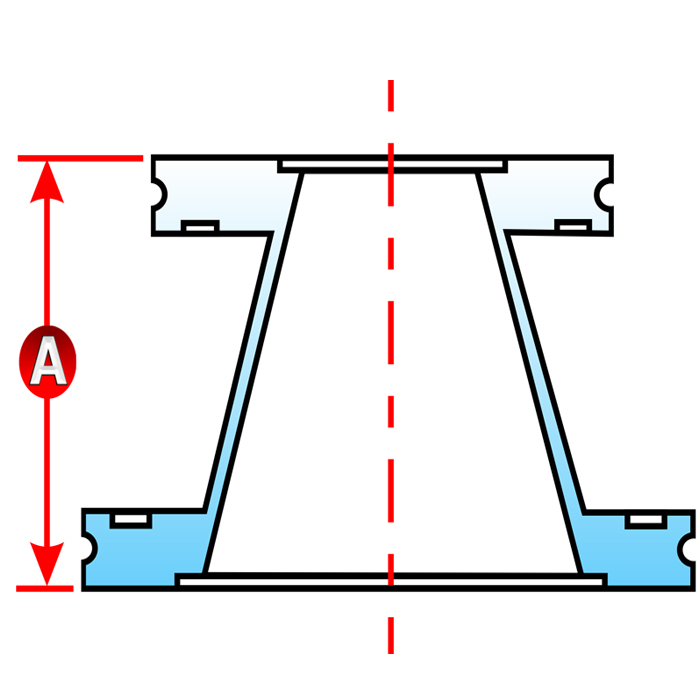

Common Dimensions: A = 4.125" (105mm)
These conical reducer vacuum fittings follow International Standards Organization (ISO) standards and have a flange size of NW-80 to NW-100. ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum flanges are made of stainless steel.
Reducer conical, NW-80 to NW-100 Vacuum Fittings, ISO-LF Large Flange Sizes LF-80 to LF-100, Stainless Steel
ISO-LF Flange Size: NW-80 to NW-100
Common Dimensions: A = 4.125" (105mm)
