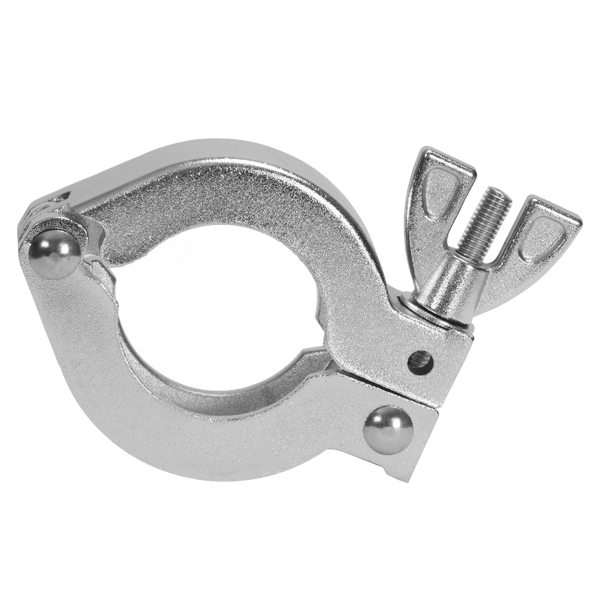

Quick Clamp with Wing Nut Closure KF-25 Vacuum Fittings, ISO-KF Flange Size NW-25, Nickel Plated Aluminum
KF-25 Quick Clamp with Wing Nut Closure
ISO-KF Flange Size: NW-25

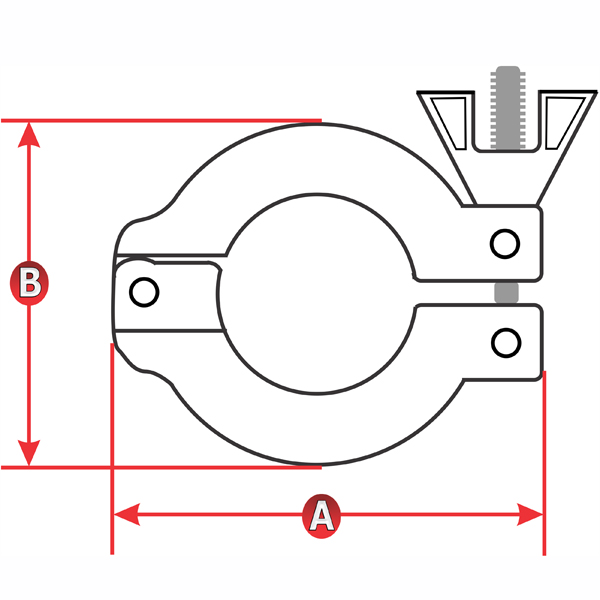

Common Dimensions: A=2 7/8" (72mm), B=2 1/8" (54mm)

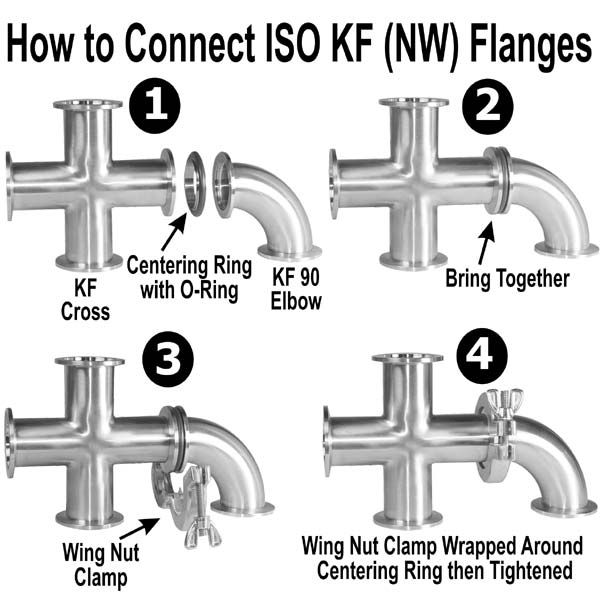

These KF-25 Quick Clamp with Wing Nut Closure vacuum fittings follow ISO-KF standards and have a flange size of NW-25. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of Aluminum.
KF-25 Quick Clamp with Wing Nut Closure
ISO-KF Flange Size: NW-25
Common Dimensions: A=2 7/8" (72mm), B=2 1/8" (54mm)
