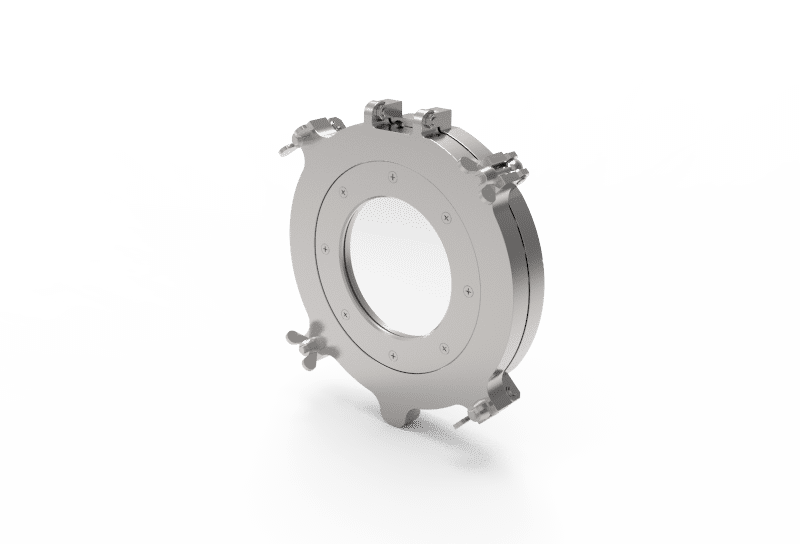

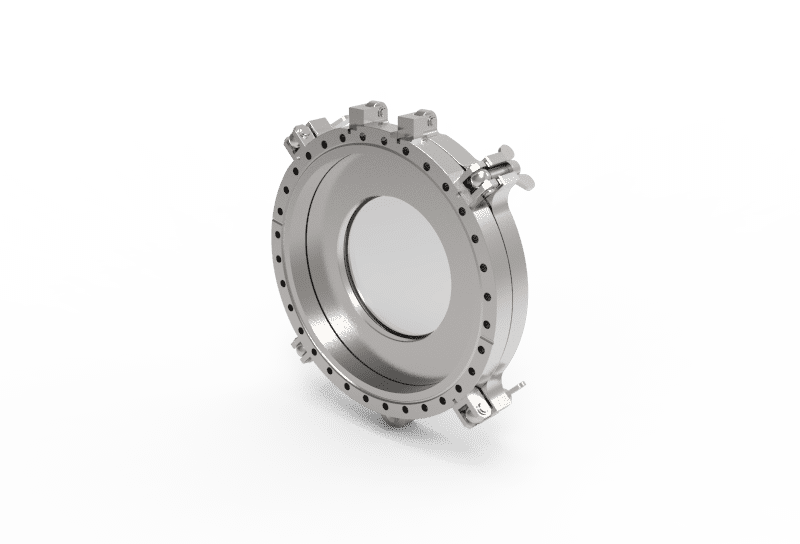

QAD250VP-AL-304 CF Quick Access Door with Viewport CF Quick Access Door with Viewport
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | CF Quick Access Door with Viewport |
|---|---|
| Bakeout temperature | 248 °F |
| Max. bakeout temperature | 120 °C |
| Bore count | 32 |
| Window thickness | 0.354 ″ |
| Article no. | 311434 |
| Connection type | CF |
| Nominal diameter | 250 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Flange material | Stainless Steel 304 |
| Max. operating temperature | 120 °C |
| Max. operating temperature | 248 °F |
| Outer diameter | 305 mm |
| Outer diameter | 12.008 ″ |
| Diameter | 360 mm |
| Diameter | 14.173 ″ |
| Diameter 2 | 250 mm |
| Diameter 2 | 9.843 ″ |
| Diameter 3 | 150 mm |
| Diameter 3 | 5.906 ″ |
| Length | 53 mm |
| Length | 2.087 ″ |
| Length 2 | 305 mm |
| Length 2 | 12.008 ″ |
| Length 3 | 13.701 ″ |
| Length 4 | 305 mm |
| Length 4 | 12.008 ″ |
| View diameter | 5.906 ″ |
| Window mounting | FKM-O-Ring |
| Window thickness | 9 mm |
| Window material | Borosilicate |
| Transmission range | appr. 400 - 2500 nm |
| View diameter | 150 mm |
| Purity class | PCS |
