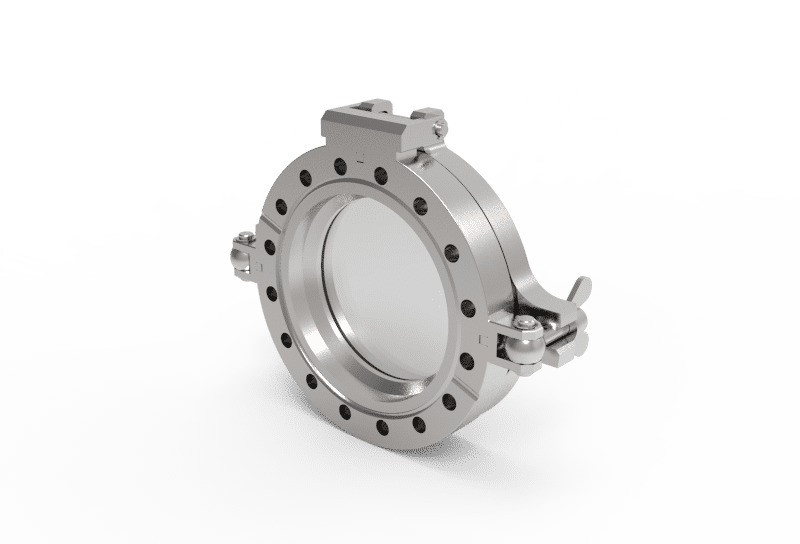

QAD100VP-AL-304 CF Quick Access Door with Viewport CF Quick Access Door with Viewport
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | CF Quick Access Door with Viewport |
|---|---|
| Bakeout temperature | 248 °F |
| Max. bakeout temperature | 120 °C |
| Bore count | 16 |
| Window thickness | 0.197 ″ |
| Article no. | 302397 |
| Connection type | CF |
| Nominal diameter | 100 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Flange material | Stainless Steel 304 |
| Max. operating temperature | 120 °C |
| Max. operating temperature | 248 °F |
| Outer diameter | 152 mm |
| Outer diameter | 5.984 ″ |
| Diameter | 165 mm |
| Diameter | 6.496 ″ |
| Diameter 2 | 100 mm |
| Diameter 2 | 3.937 ″ |
| Diameter 3 | 95 mm |
| Diameter 3 | 3.74 ″ |
| Length | 33 mm |
| Length | 1.299 ″ |
| Length 2 | 194 mm |
| Length 2 | 7.638 ″ |
| Length 3 | 6.496 ″ |
| Length 4 | 198 mm |
| Length 4 | 7.795 ″ |
| View diameter | 3.701 ″ |
| Window mounting | FKM-O-Ring |
| Window thickness | 5 mm |
| Window material | Borosilicate |
| Transmission range | appr. 400 - 2500 nm |
| View diameter | 94 mm |
| Purity class | PCS |
