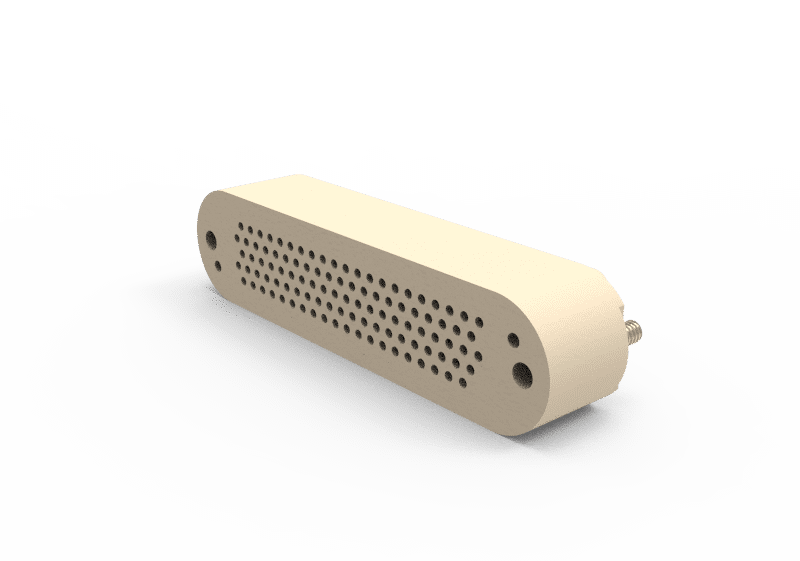

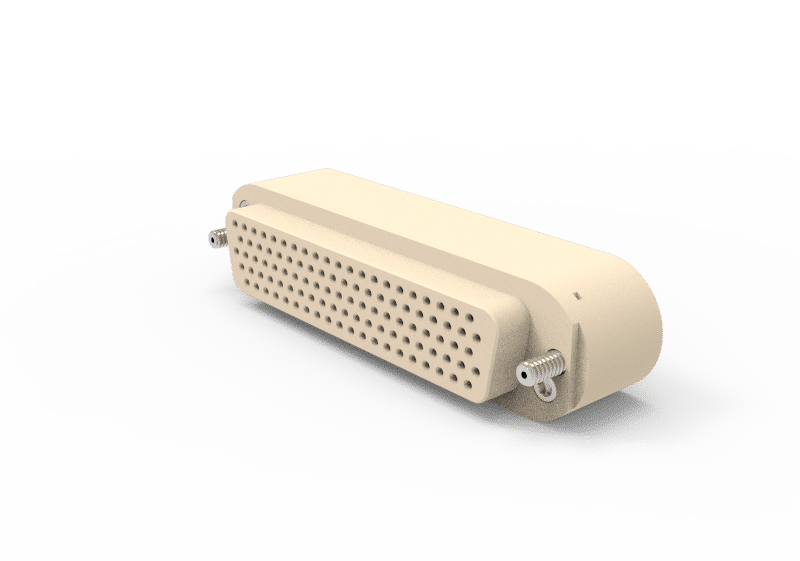

PLUG-SUBDHD-104-P-AWG28 Sub-D HD (high density) Sub-D HD (high density)
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Sub-D HD, vacuum side female plug |
|---|---|
| Bakeout temperature | 482 °F |
| Max. bakeout temperature | 250 °C |
| Wire termination | Crimp |
| Max. wire cross section | 24 |
| Min. wire cross section | 28 |
| Strain relief | No |
| Contacts included | Yes |
| Contact coating | Gold-plated |
| Article no. | 375048 |
| Number of contacts | 104 |
| Max. voltage | 0,5 kV DC |
| Max. voltage | 0.5 kV DC |
| Max. current per contact | 5 A |
| Maximum current per contact | 5 A |
| Impedance | Not specified |
| Plug connections | Not specified |
| Material contact(s) | Copper alloy |
| Magnetic | No |
| Min. operating temperature | -200 °C |
| Min. operating temperature | -328 °F |
| Max. operating temperature | 200 °C |
| Max. operating temperature | 392 °F |
| Length | 19,8 mm |
| Length | 0.78 ″ |
| Length 2 | 17,1 mm |
| Length 2 | 0.673 ″ |
| Length 3 | 71,5 mm |
| Length 3 | 2.815 ″ |
| Purity class | PCS |
