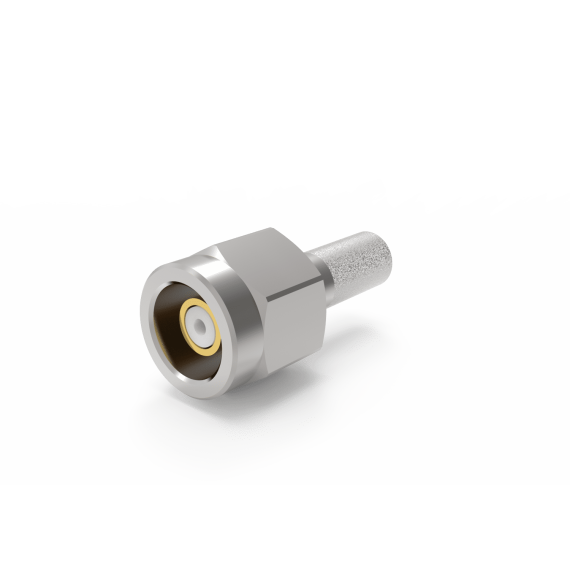

PLUG-SMA50-V Accessories - Coaxial Feedthroughs Accessories - Coaxial Feedthroughs
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | SMA 50 Ohm |
|---|---|
| Bakeout temperature | 311 °F |
| Max. bakeout temperature | 155 °C |
| Wire termination | Crimp |
| Strain relief | Yes |
| Contact coating | Gold-plated |
| Article no. | 100582 |
| Number of contacts | 1 |
| Max. voltage | 0,5 kV DC |
| Max. voltage | 0.5 kV DC |
| Impedance | 50 Ohm |
| Maximum frequency (recommended) | 18 GHz |
| Frequency | 18 GHz |
| Plug connections | Not specified |
| Material housing/weld adapter | Stainless steel 304L |
| Material insulation | PTFE |
| Material contact(s) | Copper alloy |
| Magnetic | No |
| Min. operating temperature | -55 °C |
| Min. operating temperature | -67 °F |
| Max. operating temperature | 155 °C |
| Max. operating temperature | 311 °F |
| Length | 17,8 mm |
| Length | 0.701 ″ |
| Length 2 | 8,4 mm |
| Length 2 | 0.331 ″ |
| Wrench width imp | 0.315 ″ |
| Wrench width | 8 mm |
| Purity class | PCS |
