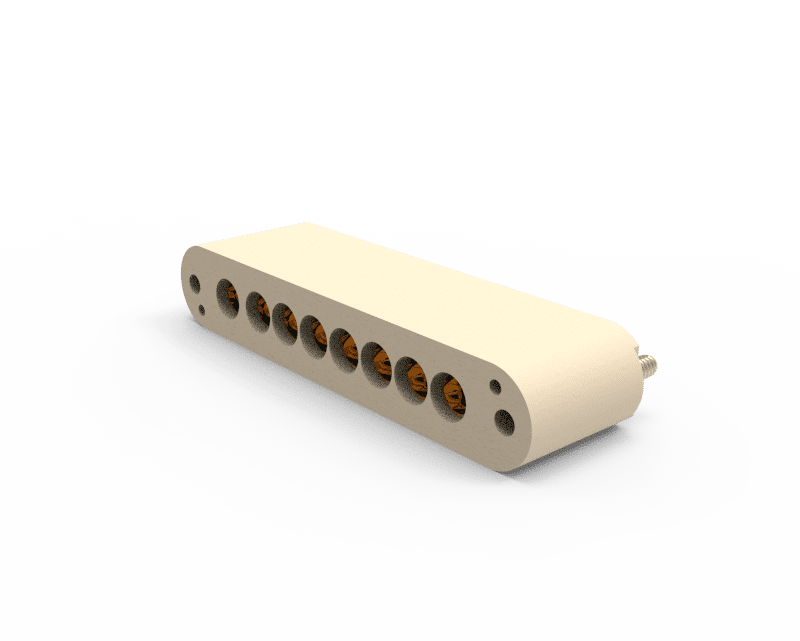

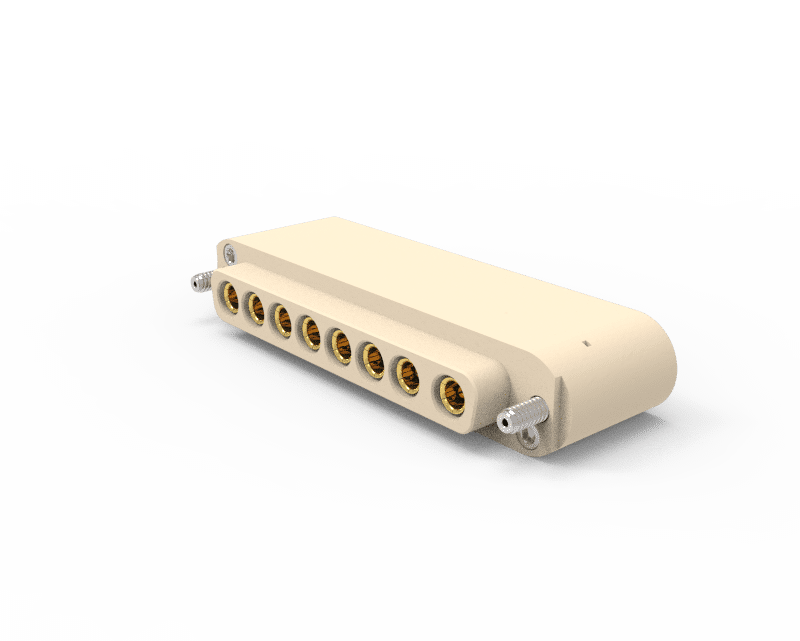

PLUG-PSUBD-8-P-AWG8 Sub-D Power Sub-D Power
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Vacuum side female Power-Sub-D connector kit |
|---|---|
| Bakeout temperature | 482 °F |
| Max. bakeout temperature | 250 °C |
| Wire termination | Crimp |
| Max. wire cross section | 8 |
| Min. wire cross section | 8 |
| Strain relief | No |
| Contacts included | Yes |
| Contact coating | Gold-plated |
| Article no. | 415668 |
| Number of contacts | 8 |
| Max. voltage | 0,5 kV DC |
| Max. voltage | 0.5 kV DC |
| Max. current per contact | 40 A |
| Maximum current per contact | 40 A |
| Impedance | Not specified |
| Plug connections | Not specified |
| Material contact(s) | Copper alloy |
| Magnetic | No |
| Min. operating temperature | -200 °C |
| Min. operating temperature | -328 °F |
| Max. operating temperature | 200 °C |
| Max. operating temperature | 392 °F |
| Length | 25,4 mm |
| Length | 1 ″ |
| Length 2 | 12,6 mm |
| Length 2 | 0.496 ″ |
| Length 3 | 71,5 mm |
| Length 3 | 2.815 ″ |
| Purity class | PCS |
