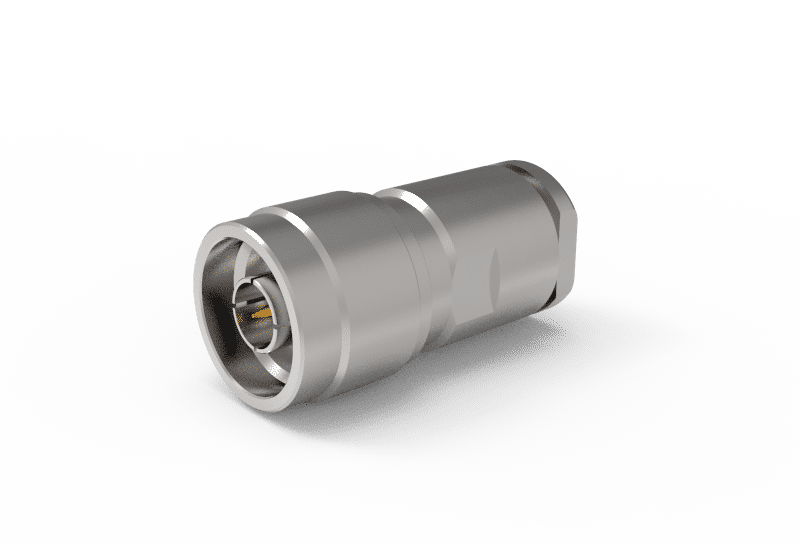

PLUG-N50-A Accessories - Coaxial Feedthroughs Accessories - Coaxial Feedthroughs
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Type N 50 Ohm |
|---|---|
| Bakeout temperature | 329 °F |
| Max. bakeout temperature | 165 °C |
| Wire termination | Clamp |
| Strain relief | Yes |
| Contacts included | Yes |
| Contact coating | Gold-plated |
| Article no. | 100577 |
| Number of contacts | 1 |
| Max. voltage | 1,5 kV DC |
| Max. voltage | 1.5 kV DC |
| Impedance | 50 Ohm |
| Maximum frequency (recommended) | 6 GHz |
| Frequency | 6 GHz |
| Material contact(s) | Copper alloy |
| Magnetic | No |
| Min. operating temperature | -65 °C |
| Min. operating temperature | -85 °F |
| Max. operating temperature | 165 °C |
| Max. operating temperature | 329 °F |
| Outer diameter | 21 mm |
| Outer diameter | 0.827 ″ |
| Diameter | 19 mm |
| Diameter | 0.748 ″ |
| Length | 37,1 mm |
| Length | 1.461 ″ |
