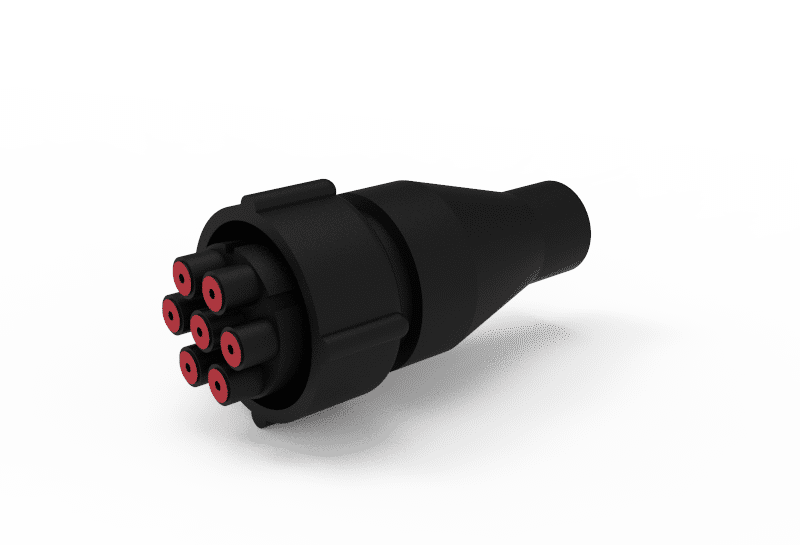

PLUG-MPCHV12-7-SI-CUL High Voltage 12 kV DC High Voltage 12 kV DC
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | High Voltage 12 kV DC, air side plugs |
|---|---|
| Bakeout temperature | 185 °F |
| Max. bakeout temperature | 85 °C |
| Wire termination | Crimp |
| Max. wire cross section | 16 |
| Min. wire cross section | 18 |
| Strain relief | Yes |
| Contacts included | Yes |
| Contact coating | Gold-plated |
| Article no. | 100573 |
| Number of contacts | 7 |
| Max. voltage | 12 kV DC |
| Max. voltage | 12 kV DC |
| Max. current per contact | 13 A |
| Maximum current per contact | 13 A |
| Impedance | Not specified |
| Plug connections | Not specified |
| Material housing/weld adapter | Synthetic |
| Material contact(s) | Copper alloy |
| Magnetic | No |
| Min. operating temperature | -15 °C |
| Min. operating temperature | 5 °F |
| Max. operating temperature | 85 °C |
| Max. operating temperature | 185 °F |
| Diameter | 36 mm |
| Diameter | 1.417 ″ |
| Length | 17,5 mm |
| Length | 0.689 ″ |
| Length 2 | 83 mm |
| Length 2 | 3.268 ″ |
