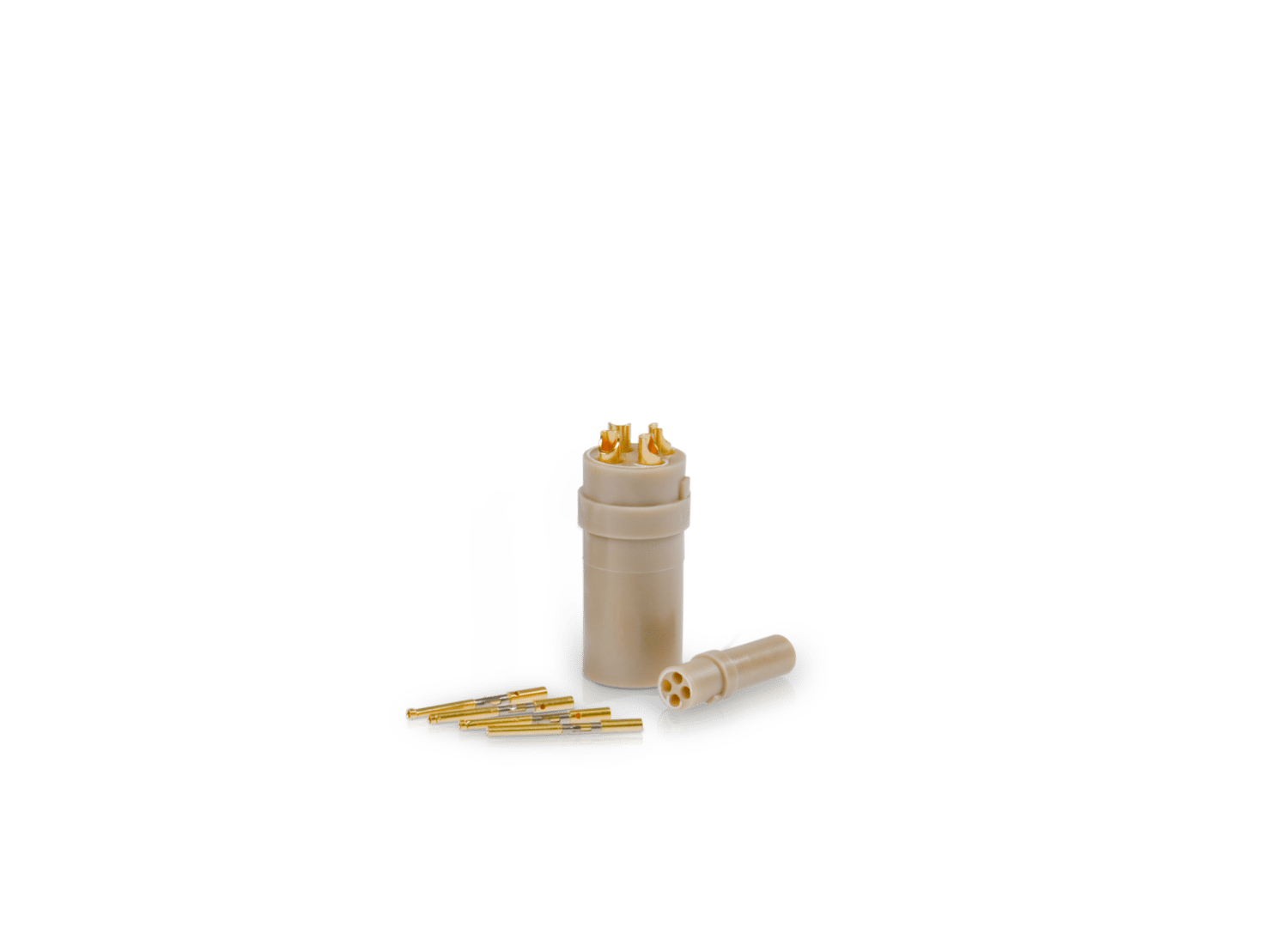

PLUG-MINI-2B-12-P-L Push-Pull Compact Power Push-Pull Compact Power
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Push-Pull Compact Power, contact inserts with solder cups |
|---|---|
| Bakeout temperature | 392 °F |
| Max. bakeout temperature | 200 °C |
| Wire termination | Solder |
| Max. wire cross section | 22 |
| Strain relief | No |
| Contacts included | Yes |
| Contact coating | Gold-plated |
| Article no. | 408188 |
| Number of contacts | 12 |
| Impedance | Not specified |
| Plug connections | Not specified |
| Material insulation | PEEK |
| Material contact(s) | Copper alloy |
| Magnetic | No |
| Min. operating temperature | -50 °C |
| Min. operating temperature | -58 °F |
| Max. operating temperature | 200 °C |
| Max. operating temperature | 392 °F |
| Diameter | 9 mm |
| Diameter | 0.354 ″ |
| Length | 25 mm |
| Length | 0.984 ″ |
| Length 2 | 21 mm |
| Length 2 | 0.827 ″ |
| Purity class | PCS |
