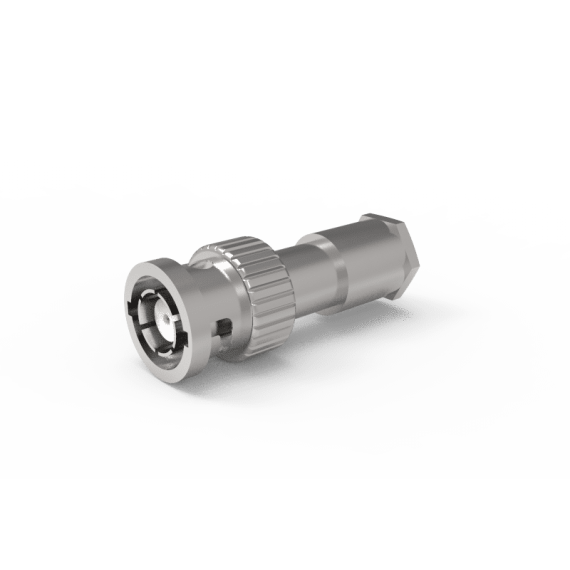

PLUG-MHV-A Accessories - Coaxial Feedthroughs Accessories - Coaxial Feedthroughs
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | MHV |
|---|---|
| Bakeout temperature | 329 °F |
| Max. bakeout temperature | 165 °C |
| Wire termination | Clamp |
| Strain relief | Yes |
| Contact coating | Gold-plated |
| Article no. | 100543 |
| Number of contacts | 1 |
| Max. voltage | 5 kV DC |
| Max. voltage | 5 kV DC |
| Impedance | 50 Ohm |
| Maximum frequency (recommended) | 0,3 GHz |
| Frequency | 0.3 GHz |
| Shield | Not specified |
| Plug connections | Not specified |
| Material housing/weld adapter | Brass (nickel-plated) |
| Material insulation | PTFE |
| Material contact(s) | Brass alloy |
| Min. operating temperature | -65 °C |
| Min. operating temperature | -85 °F |
| Max. operating temperature | 165 °C |
| Max. operating temperature | 329 °F |
| Outer diameter | 14,4 mm |
| Outer diameter | 0.567 ″ |
| Length | 38 mm |
| Length | 1.496 ″ |
| Wrench width imp | 0.512 ″ |
| Wrench width | 13 mm |
