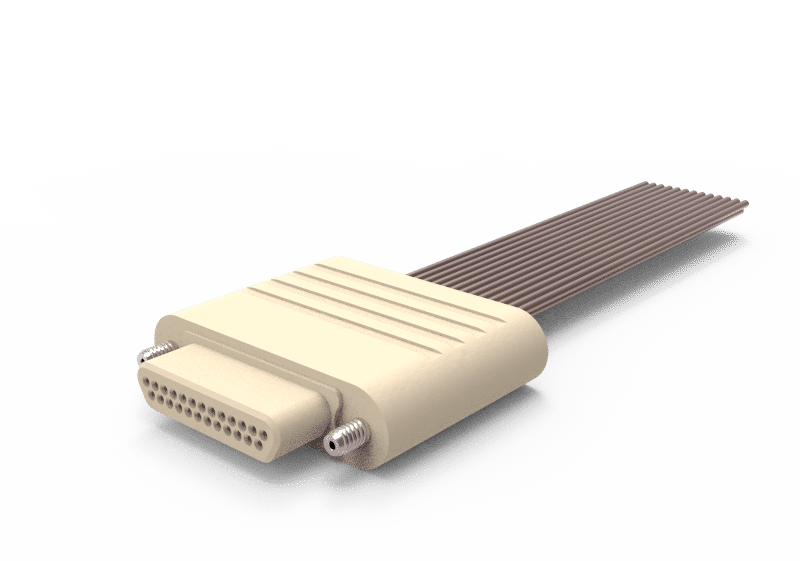

PLUG-MDTL-25-P-ASSY Micro-D Micro-D
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Micro-D, vacuum side plugs |
|---|---|
| Bakeout temperature | 482 °F |
| Max. bakeout temperature | 250 °C |
| Wire termination | Crimp |
| Strain relief | No |
| Contacts included | Yes |
| Contact coating | Gold-plated |
| Wire type | stranded wire |
| Wire size (mm²) | 0.08 mm² |
| Wire size (AWG) | 28 |
| Cable type | standard |
| Article no. | 410537 |
| Number of contacts | 25 |
| Max. voltage | 0,3 kV DC |
| Max. voltage | 0.3 kV DC |
| Max. current per contact | 2 A |
| Maximum current per contact | 2 A |
| Plug connections | Not specified |
| Material contact(s) | Copper alloy |
| Magnetic | No |
| Min. operating temperature | -200 °C |
| Min. operating temperature | -328 °F |
| Max. operating temperature | 200 °C |
| Max. operating temperature | 392 °F |
| Length | 29,3 mm |
| Length | 1.154 ″ |
| Length 2 | 600 mm |
| Length 2 | 23.622 ″ |
| Length 3 | 7,6 mm |
| Length 3 | 0.299 ″ |
| Length 4 | 30,4 mm |
| Length 4 | 1.197 ″ |
| Purity class | PCS |
